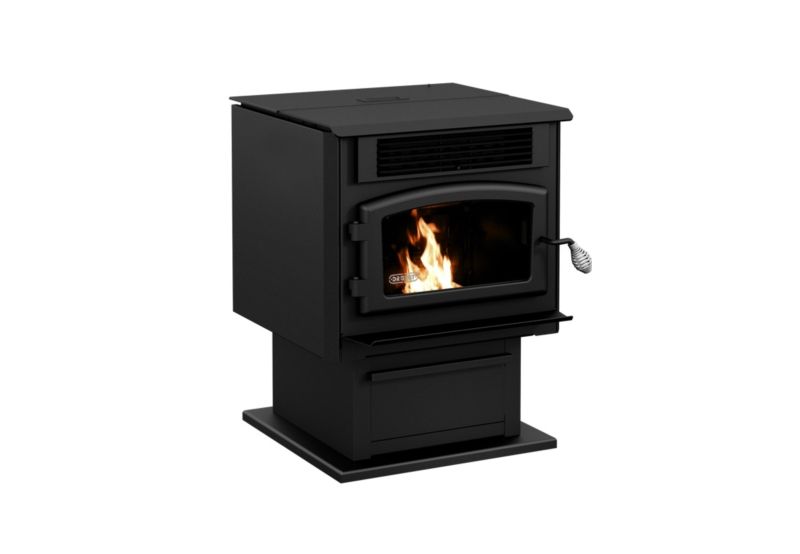

ECO-45
DP00045Serial Numbers: 8742 to 9506

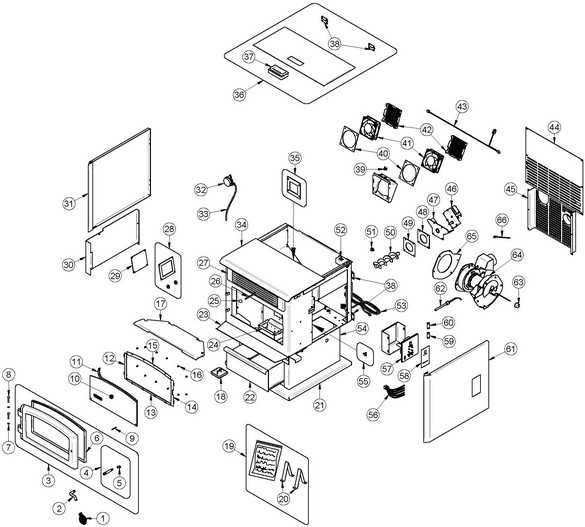

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 2 | PL52683 REMOVABLE HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 3 | SE24085-02 DOOR ASSEMBLY WITH GASKET, HANDLE AND LATCH 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 4 | AC09176 DOOR HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 5 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 6 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 7 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 8 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 9 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | SE52708 7 51/64" x 16 3/4" x 8 23/32" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 11 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 12 | PL52717 HINGE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 13 | PL52718 AIR DEFLECTOR TRIM 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 14 | PL52719 HANDLE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 15 | PL08537-04 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 16 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 12 / appliance (sold individually) | CAD $1.00 | -- | |
| 17 | PL52628 PELLET STOVE BAFFLE 45 SERIES 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 18 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 19 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 20 | PL52691 LOG SUPPORT BRACKET 45 SERIE 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 22 | SE52615 ASH DRAWER 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 23 | PL16049 ASH LIP 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 24 | SE52545 PELLET BURN POT ASSEMBLY 45 SERIE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 25 | 30562 3/4" x 1/4"-20 ROUND HANDLE FOR EXCHANGER ROD 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 26 | 30546 THREADED HEAT EXCHANGER ROD 45 SERIE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 27 | SE56030 UPPER LOUVRE ASSEMBLY 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 28 | AC09189 45 SERIES MAINTENANCE GASKET KIT 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 29 | PL52564 EXHAUST ACCESS PANEL FOR MAINTENANCE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 30 | PL52611 LEFT BOTTOM DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 31 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 32 | 44029 PRESSURE SWITCH 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 33 | 49004 PRESSURE SWITCH HOSE 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 34 | SE52606 FRONT TOP ASSEMBLY 2 / appliance (sold individually) | CAD $100.00 | -- | |
| 35 | 21108 PELLET CHUTE GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 36 | SE56020 HOPPER LID ASSEMBLY 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 37 | 30527 HOPPER LID PLASTIC HANDLE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 38 | 30013 2" x 1 1/2" HINGE 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 39 | 44058 THERMODISC 36T12 F160 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 40 | 21177 CONVECTION BLOWER GASKET 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 41 | 44100 TUBEAXIAL BLOWER 115V-60Hz-18W 2 / appliance (sold individually) | CAD $150.00 | -- | |
| 42 | PL49048 FINGER GUARD FILTER SUPPORT 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 43 | 60281 CONVECTION FAN WIRING 35 ET 45 SERIE 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 44 | PL52527 UPPER BACK PLATE 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 45 | SE52656 BOTTOM BACK PLATE 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 46 | 44038 AUGER GEAR MOTOR 1 RPM 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 47 | PL52516 AUGER SUPPORT 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 48 | 21110 AUGER PLATE GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 50 | 24017 CAST IRON AUGER 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 51 | 44059 THERMODISC 36T11 L250-25 AUTOMATIC 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 52 | 44098 HOPPER LID SAFETY SWITCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 53 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 54 | PL52642 BOTTOM RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 55 | 44041 THERMODISC L250F MANUAL RESET 36T16 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 56 | 60286 WIRE HARNESS 45 SERIE VERSION 3 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 57 | PL44141 CONTROL BOARD 45 SERIES PRIMMA VERSION 1 / appliance (sold individually) | CAD $350.00 | -- | |
| 57 | SE52680 45 SERIES PC BOARD ASSEMBLY 1 / appliance (sold individually) | CAD $420.00 | -- | |
| 58 | 44148 MEMBRANE SWITCH CONTROL BOARD 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 59 | 44200 SLOW BLOW GLASS FUSE 2A / 250V (5 MM X 20 MM) 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 59 | 44152 FUSE 0.5A / 250V (5 mm x 20 mm) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 59 | 44201 SLOW BLOW GLASS FUSE 4A / 250V (5 MM X 20 MM) 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 59 | 44149 FUSE 8A / 250V (5 mm x 20 mm) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 59 | 44199 SLOW BLOW GLASS FUSE 1.25A / 250V (5 MM X 20 MM) SLOW BLOW GLASS FUSE 1.25A / 250V (5 MM X 20 MM) 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 60 | 44150 FUSE 3A / 250V (5 mm x 20 mm) 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 61 | PL52607 UPPER RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | -- | -- | |
| 62 | 44132 PELLET IGNITER 120 V WITH ALLEN SET SCREW 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 63 | 60015 CONTROL KNOB 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 64 | SE44039 COMBEX BLOWER 120 VOLTS 45 SERIE 1 / appliance (sold individually) | CAD $320.00 | -- | |
| 65 | 21109 COMBUSTION BLOWER INSULATION GASKET 11-325-085 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 66 | SE44095 THERMISTOR ASSEMBLY 1 / appliance (sold individually) | CAD $45.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
