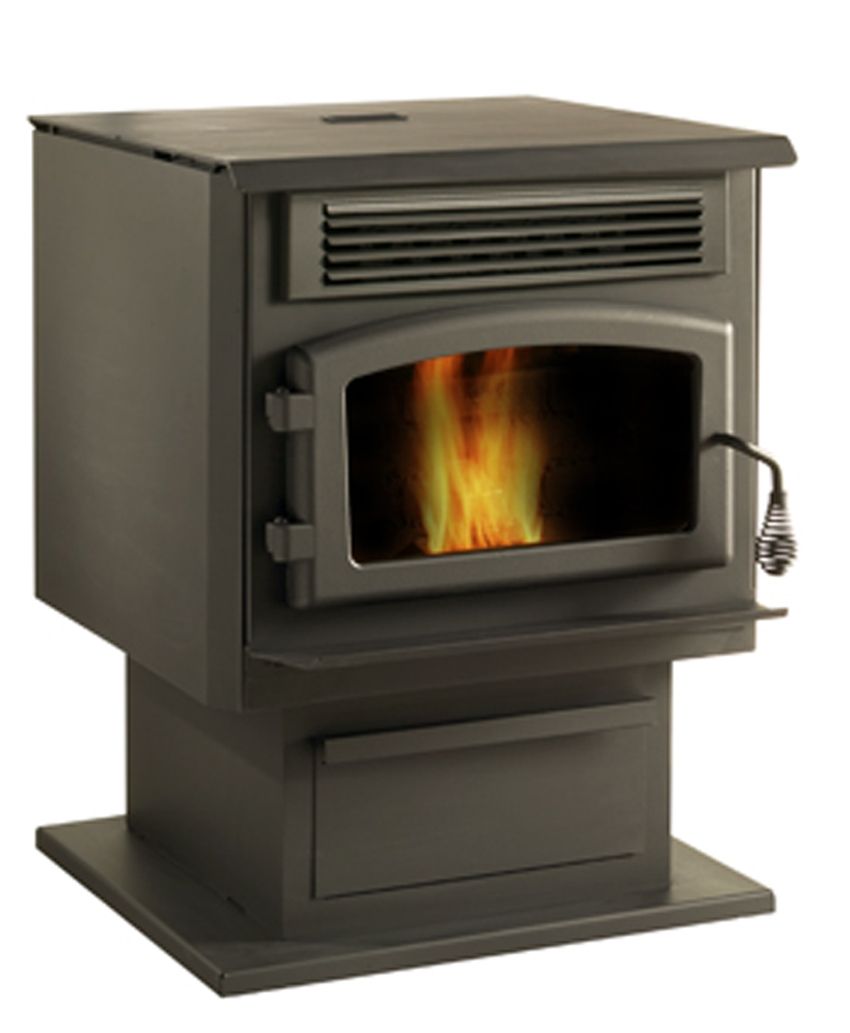

ECO-45
DP00045-1Serial Numbers: 100 to 1676

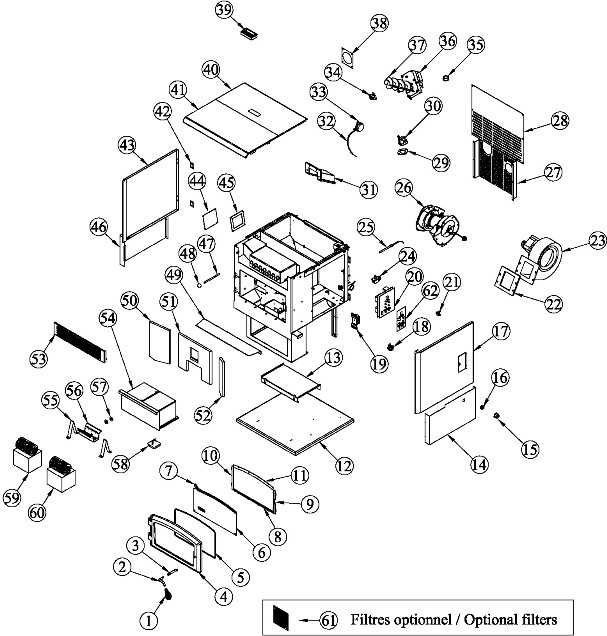

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 2 | PL52683 REMOVABLE HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 3 | AC09176 DOOR HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 4 | SE24085-02 DOOR ASSEMBLY WITH GASKET, HANDLE AND LATCH 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 5 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 6 | SE52708 7 51/64" x 16 3/4" x 8 23/32" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 8 | PL52718 AIR DEFLECTOR TRIM 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 9 | PL52719 HANDLE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 10 | PL52717 HINGE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 11 | PL08537-04 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 12 | PL52627 BASE 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 13 | PL52618 ASH DRAWER GUIDE 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 14 | PL52642 BOTTOM RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 15 | 60015 CONTROL KNOB 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 16 | 30412 BLACK UNIVERSAL SNAP-IN BUSHING 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 17 | PL52607 UPPER RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | -- | -- | |
| 18 | 44058 THERMODISC 36T12 F160 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 19 | 30454 DOUBLE MAGNET 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 20 | PL44032 PROGRAMMED CONTROL BOARD FOR PELLET STOVE 45 SERIES VERSION 1 1 / appliance (sold individually) | CAD $290.00 | -- | |
| 21 | 44041 THERMODISC L250F MANUAL RESET 36T16 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 22 | 21107 ANTI-VIBRATION GASKET FOR CONVECTION BLOWER 45 SERIE 1ST GENERATION 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 23 | 44040 CONVECTION BLOWER FOR PELLET STOVE 1 / appliance (sold individually) | CAD $240.00 | -- | |
| 24 | 44098 HOPPER LID SAFETY SWITCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 25 | 44030 PELLET STOVE IGNITER (THREADED) 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 26 | SE44039 COMBEX BLOWER 120 VOLTS 45 SERIE 1 / appliance (sold individually) | CAD $320.00 | -- | |
| 27 | SE52656 BOTTOM BACK PLATE 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 28 | PL52527 UPPER BACK PLATE 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 29 | 21129 INSULATION GASKET F120 MICRO, F140 11-029-085 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 30 | SE09242 F140 REPLACEMENT THERMODISC KIT 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 31 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 32 | 49004 PRESSURE SWITCH HOSE 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 33 | 44029 PRESSURE SWITCH 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 34 | 44059 THERMODISC 36T11 L250-25 AUTOMATIC 2 / appliance (sold individually) | CAD $25.00 | -- | |
| 35 | 30528 BRASS BUSHING FOR PELLET STOVE AUGER 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 36 | 44038 AUGER GEAR MOTOR 1 RPM 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 37 | 24017 CAST IRON AUGER 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 38 | 21110 AUGER PLATE GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 39 | 30527 HOPPER LID PLASTIC HANDLE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 40 | SE56020 HOPPER LID ASSEMBLY 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 41 | SE52606 FRONT TOP ASSEMBLY 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 42 | 30013 2" x 1 1/2" HINGE 6 / appliance (sold individually) | CAD $5.00 | -- | |
| 43 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 44 | PL52564 EXHAUST ACCESS PANEL FOR MAINTENANCE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 45 | AC09189 45 SERIES MAINTENANCE GASKET KIT 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 46 | PL52611 LEFT BOTTOM DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 47 | 30546 THREADED HEAT EXCHANGER ROD 45 SERIE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 48 | 30562 3/4" x 1/4"-20 ROUND HANDLE FOR EXCHANGER ROD 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 49 | PL16049 ASH LIP 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 50 | 21117 LEFT HAND SIDE DECORATIVE BRICK 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 51 | 21119 MIDDLE DECORATIVE BRICK 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 52 | 21118 RIGHT HAND SIDE DECORATIVE BRICK PANEL FOR PELLET 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 53 | SE56030 UPPER LOUVRE ASSEMBLY 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 54 | SE52615 ASH DRAWER 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 55 | PL52691 LOG SUPPORT BRACKET 45 SERIE 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 56 | SE52545 PELLET BURN POT ASSEMBLY 45 SERIE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 57 | AC09189 45 SERIES MAINTENANCE GASKET KIT 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 58 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 59 | AC01278 DECORATIVE LOG SET 45-SERIES 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 61 | 21300 AXIAL BLOWER AIR FILTER 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 62 | 45227 LEXAN DROLET PELLET STOVE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 63 | 44013 FUSE 7.5A / 250V / 1/4"Ø x 1 1/4"L 1 / appliance (sold individually) | CAD $16.00 | -- | |
| 64 | 44015 FUSE 5A / 250V / 1/4"Ø x 1 1/4"L 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 65 | 45167 INSTRUCTION MANUAL DROLET PELLET STOVE 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
