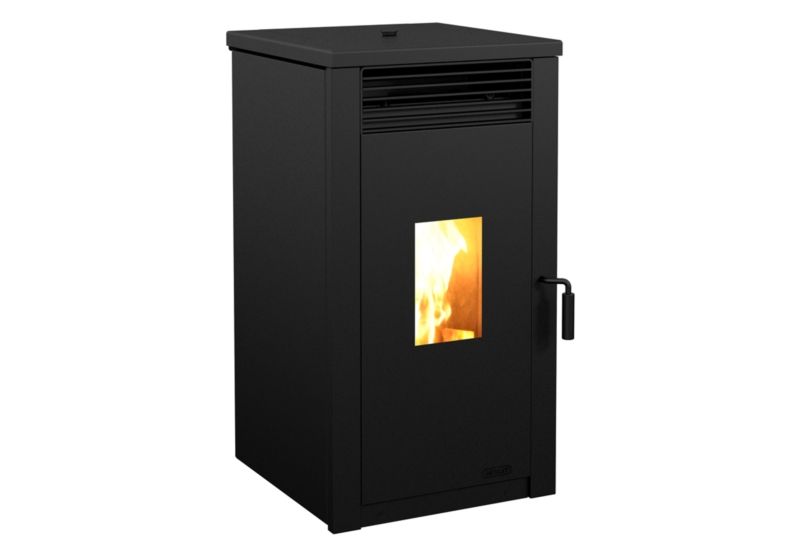

EDISON
DP00065Serial Numbers: 90 to 252

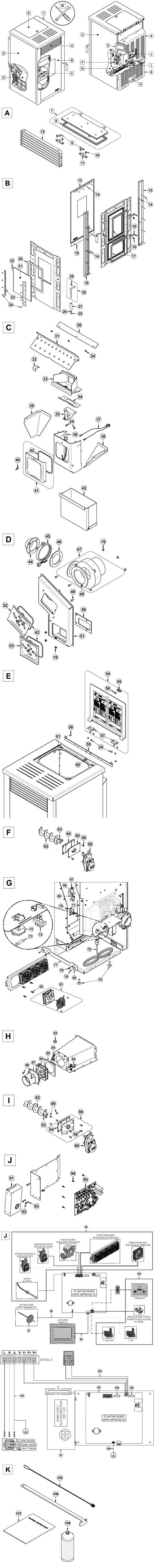

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | SE68340 TOP ASSEMBLY 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 2 | SE68347 LEFT DECORATIVE PANNEL 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 3 | SE68346 RIGHT DECORATIVE PANNEL 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 4 | PL68344 TOP REAR VENTILATED PANEL 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 5 | SE44157 LCD HOUSING ASSEMBLY 1 / appliance (sold individually) | CAD $360.00 | -- | |
| 6 | PL68294 BOTTOM REAR VENTILATED PANEL 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 7 | SE68295 HEAT EXCHANGER ACCESS COVER WITH GASKET 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 8 | AC06900 1/2" x 9' BLACK ROUND GASKET WITH ADHESIVE KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 9 | 30484 WING NUT 1/4-20 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 11 | PL67169 ACCESS DOOR ALIGNMENT BOLT 2 / appliance (sold individually) | CAD $19.00 | -- | |
| 12 | SE68348 DOOR ASSEMBLY 1 / appliance (sold individually) | CAD $675.00 | -- | |
| 13 | PL68353 DECORATIVE PANEL 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 14 | 30021 BLACK SELF TAPPING SCREW 8-32 "F" TYPE x 7/16" FLAT HEAD QUADREX 20 / appliance (sold individually) | CAD $13.00 | -- | |
| 15 | PL68351 LEFT DECORATIVE PANEL 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 16 | PL68319 DOOR HINGE 2 / appliance (sold individually) | CAD $29.00 | -- | |
| 17 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 18 | PL68352 RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 19 | 30220 FLANGED LOCKNUT 1/4-20 9 / appliance (sold individually) | CAD $1.00 | -- | |
| 20 | AC06950 1" x 1/8" x 9' SELF-ADHESIVE GASKET 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 21 | SE68357 EDISON-48 HEATER GLASS 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 22 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 23 | PL68349 GLASS HOLDER 2 / appliance (sold individually) | CAD $34.00 | -- | |
| 24 | 30029 THREAD CUTTING SCREW 10-24 TYPE "F" x 3/8" HEX WASHER 20 / appliance (sold individually) | CAD $1.00 | -- | |
| 25 | 30025 BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 26 | 30185 BLACK WASHER 17/64" AA TYPE 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 27 | 30742 DRILLED BLACK WOODEN DOOR HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 28 | AC09196 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 29 | AC09163 RIGHT HAND SIDE REPLACEMENT LATCH KIT 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 30 | PL68299 BAFFLE EXTENSION 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 31 | PL68298 STAINLESS STEEL BAFFLE 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 32 | PL68372 BAFFLE RETAINER 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 33 | SE68310 BURN POT 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 34 | PL68252 COMBUSTION AIR DEFLECTOR 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 35 | 30813 IGNITER SUPPORT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 36 | 44167 IGNITER 24V DC - 150W 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 37 | 60360 IGNITOR WIRE EXTENSION WITH QUICK CONNECT (23.375") 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 38 | PL68302 RIGHT ASH DEFLECTOR 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 39 | PL68301 LEFT ASH DEFLECTOR 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 40 | 30485 WING NUT 1/4-20 x 1/2" ZINC PLATTED 1 / appliance (sold individually) | CAD $6.00 | -- | |
| 41 | SE68286 BURN POT RECEPTACLE CLEANOUT COVER 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 42 | AC06815 3/16" x 5' BLACK GASKET AND SILICONE KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 43 | SE68308 ASH DRAWER 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 44 | SE64345 EXHAUST PIPE ADAPTER 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 45 | 30762 VENT ADAPTER SECURE CLAMP 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 46 | 21392 EXHAUST ADAPTER GASKET 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 47 | SE44164 EXHAUST BLOWER BLDC ASSEMBLY 1 / appliance (sold individually) | CAD $290.00 | -- | |
| 48 | 21393 EXHAUST BLOWER GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 49 | 30093 BOLT 1/4-20 x 3/4" HEX GRADE 5 3 / appliance (sold individually) | CAD $2.00 | -- | |
| 50 | 21401 EXHAUST CHANEL GASKET 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 51 | SE68274 EXHAUST CHANNEL ASSEMBLY 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 52 | SE68366 EXHAUST CHANNEL MAINTENANCE ACCESS DOOR 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 53 | SE67154 INFERIOR EXHAUST CHANNEL MAINTENANCE ACCESS DOOR 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 56 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 57 | 30013 2" x 1 1/2" HINGE 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 58 | 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD 6 / appliance (sold individually) | CAD $1.00 | -- | |
| 59 | PL68377 HOPPER LID SUPPORT 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 60 | 44098 HOPPER LID SAFETY SWITCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 61 | AC06820 3/8 x 3/8 x 37/64 EPDM GASKET KIT (5') 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 62 | 24017 CAST IRON AUGER 2 / appliance (sold individually) | CAD $130.00 | -- | |
| 63 | 30092 BOLT 5/16"-18 x 3/4" HEX GRADE 5 4 / appliance (sold individually) | CAD $2.00 | -- | |
| 64 | 21193 AUGER SUPPORT INSULATION 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 65 | PL62281 AUGER BUSHING PLATE 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 66 | 44163 GEAR MOTOR BLDC 4.2 RPM FOR AUGER (80 lb-po) 2 / appliance (sold individually) | CAD $220.00 | -- | |
| 67 | 44059 THERMODISC 36T11 L250-25 AUTOMATIC 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 68 | 30080 METAL SCREW #6 x 1/4 TYPE B PAN PHILLIPS 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 69 | PL68366 L250-25 AUTOMATIC SUPPORT 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 70 | PL62343 F-160 SUPPORT 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 71 | 44058 THERMODISC 36T12 F160 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 72 | 44174 POWER CORD CONNECTOR 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 73 | 44150 FUSE 3A / 250V (5 mm x 20 mm) 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 74 | 60036 THERMOSTAT TERMINAL 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 75 | 60331 POWER CORD 6' 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 76 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 2 / appliance (sold individually) | CAD $8.00 | -- | |
| 77 | PL68264 DECORATIVE PANEL SUPPORT 2 / appliance (sold individually) | -- | -- | |
| 78.1 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 79 | 30155 METAL SCREW #8 x 5/8'' PHILLIPS SELFTAPPING TEK ZINC 4 / appliance (sold individually) | CAD $15.00 | -- | |
| 80 | 30758 ENCASED MAGNETIC DISC WITH MOUNTING HOLE, CERAMIC, 3/16" THICK, 1-15/64"Ø 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 81 | SE44166 AXIAL BLOWER 24V 3414NH DC ASSEMBLY 5 / appliance (sold individually) | CAD $130.00 | -- | |
| 82 | 30815 ANTI-VIBRATION CUSHION 16 / appliance (sold individually) | CAD $19.00 | -- | |
| 83 | 30335 BLOWER ANTIVIBRATION CUSHION 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 85 | 21400 COMBUSTION BLOWER GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 86 | 44166 AXIAL FAN 24V 3414NH DC 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 87 | 30777 PLASTIC BACKDRAFT DAMPER ASSEMBLY 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 88 | 30502 SELF TAPING SCREW #8 - 32 x 1/2" TYPE F x 3/4 HEX FLAT HEAD 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 89 | 30358 MECHANICAL SCREW #10-32 x 3/8" PAN SQUARE ZINC 4 / appliance (sold individually) | CAD $16.00 | -- | |
| 90 | SE24233 GEAR MOTOR SUPPORT WITH INSULATION 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 91 | 44169 DC POWER SUPPLY 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 92 | 30192 STAR RING #10 x .410-.395" OD - .025-.020" THICK 3 / appliance (sold individually) | CAD $1.00 | -- | |
| 93 | 30106 MECHANICAL SCREW M4 x 12 LONG PAN PHILLIPS ZINC 3 / appliance (sold individually) | CAD $15.00 | -- | |
| 94.84 | 30439 TENSION CLAMP 10 / appliance (sold individually) | CAD $20.00 | -- | |
| 95 | PL44156 DC MOTHER BOARD 1 / appliance (sold individually) | CAD $490.00 | -- | |
| 96 | 60354 MAIN BOARD WIRE HARNESS 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 97 | 44165 RTD HEAT PROBE - DC 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 98 | 60366 RTD EXTENSION WIRE 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 99 | 60355 CABLE USB 2.0 MALE - MALE W/FERRITE BLACK 6' 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 100 | 60367 INLET DC HARNESS 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 101 | 60356 IEC CONNECTOR HARNESS 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 102 | 60357 BATTERY CONNECTOR HARNESS 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 103 | 44020 FUSE 7-1/2A 32V BROWN ATC 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 104 | 60340 GREEN ELECTRICAL WIRE TEW 105°C 18 AWG 4 1/16" 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 105 | 30798 HEAT EXCHANGER MAINTENANCE BRUSH Ø1 1/8" - 42" 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 106 | PL67171 SCRAPER 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 107 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
