ECO-55
DP00070-1Serial Numbers: 100 to 649

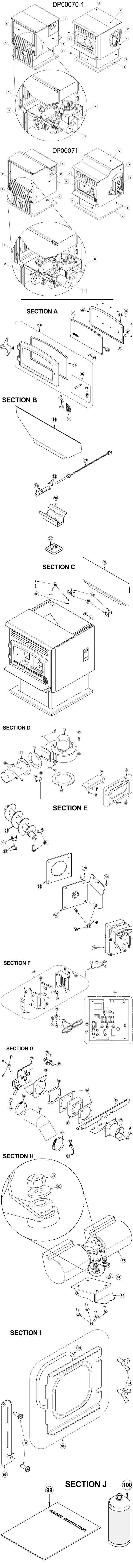

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 0 | 30546 THREADED HEAT EXCHANGER ROD 45 SERIE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 1 | PL69808 RIGHT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 2 | PL69809 LEFT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 3 | PL69806 LOWER RIGHT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 4 | PL69807 LOWER LEFT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 5 | PL69801 HOPPER LID 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 6 | PL69794 BACK PANEL 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 7 | PL69795 LOWER BACK PANEL 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 8 | SE69810 ASH DRAWER 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 10 | PL69833 LEFT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 11 | PL69854 BACK PANEL 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 12 | PL69832 RIGHT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 13 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 14 | SE24085 DOOR FRAME WITH HANDLE AND GASKET WITHOUT GLASS 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 15 | AC06200 SILICONE AND 1/4" x 1/2" x 11' BLACK GASKET KIT 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 16 | AC09176 DOOR HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 17 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 18 | PL52683 REMOVABLE HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 19 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 20 | SE52708 7 51/64" x 16 3/4" x 8 23/32" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 21 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 22 | PL52717 HINGE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 23 | PL08537-04 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 24 | PL52719 HANDLE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 25 | PL52718 AIR DEFLECTOR TRIM 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 26 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 12 / appliance (sold individually) | CAD $1.00 | -- | |
| 27 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 28 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 29 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 30 | SE69759 BURN POT 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 31 | 44192 IGNITOR TUBE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 32 | 30029 THREAD CUTTING SCREW 10-24 TYPE "F" x 3/8" HEX WASHER 16 / appliance (sold individually) | CAD $1.00 | -- | |
| 33 | SE44132 IGNITER 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 34 | PL69777 FIRE BAFFLE 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 35 | 30405 NUT #6-32 HEX ZINC 3 / appliance (sold individually) | CAD $12.00 | -- | |
| 36 | 30370 RUBBER BUMPER WITH THREADS 6-32 3 / appliance (sold individually) | CAD $16.00 | -- | |
| 37 | 44098 HOPPER LID SAFETY SWITCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 38 | 30013 2" x 1 1/2" HINGE 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 39 | SE69785 EXHAUST PIPE ASSEMBLY 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 40 | 21392 EXHAUST ADAPTER GASKET 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 41 | 30093 BOLT 1/4-20 x 3/4" HEX GRADE 5 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 42 | SE44193 EXHAUST BLOWER WITH GASKETS 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 43 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 44 | 30220 FLANGED LOCKNUT 1/4-20 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 45 | SE44095 THERMISTOR ASSEMBLY 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 46 | 21393 EXHAUST BLOWER GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 47 | PL69764 EXHAUST TRAP SUPPORT 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 48 | SE69803 EXHAUST CLEANING PANEL ASSEMBLY 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 49 | AC06815 3/16" x 5' BLACK GASKET AND SILICONE KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 50 | 30484 WING NUT 1/4-20 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 51 | 24017 CAST IRON AUGER 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 52 | 44059 THERMODISC 36T11 L250-25 AUTOMATIC 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 53 | 30138 METAL SCREW #6 - 3/8" QUADREX "A" TYPE BLACK 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 54 | 30092 BOLT 5/16"-18 x 3/4" HEX GRADE 5 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 55 | 30528 BRASS BUSHING FOR PELLET STOVE AUGER 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 56 | 21110 AUGER PLATE GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 57 | PL69773 AUGER BUSHING SUPPORT PLATE 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 58 | 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD 10 / appliance (sold individually) | CAD $1.00 | -- | |
| 59 | 30369 RUBBER BUMPER WITH THREADS (LARGE) 1 / appliance (sold individually) | CAD $16.00 | -- | |
| 60 | 44106 GEAR MOTOR FOR PELLET STOVE 1.5 RPM 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 61 | SE69791 CONTROL BOARD BOX ASSEMBLY 1 / appliance (sold individually) | CAD $410.00 | -- | |
| 62 | 44148 MEMBRANE SWITCH CONTROL BOARD 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 63 | PL69855 CONTROL BOARD 55 SERIE 1 / appliance (sold individually) | CAD $350.00 | -- | |
| 64 | 60382 55 SERIES WIRING HARNESS 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 65 | 44058 THERMODISC 36T12 F160 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 66 | 30080 METAL SCREW #6 x 1/4 TYPE B PAN PHILLIPS 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 67 | 44149 FUSE 8A / 250V (5 mm x 20 mm) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 68 | 44152 FUSE 0.5A / 250V (5 mm x 20 mm) 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 69 | 44200 SLOW BLOW GLASS FUSE 2A / 250V (5 MM X 20 MM) 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 70 | 44201 SLOW BLOW GLASS FUSE 4A / 250V (5 MM X 20 MM) 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 71 | 60036 THERMOSTAT TERMINAL 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 72 | 60196 POWER CORD RECEPTACLE 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 73 | 30155 METAL SCREW #8 x 5/8'' PHILLIPS SELFTAPPING TEK ZINC 4 / appliance (sold individually) | CAD $15.00 | -- | |
| 74 | 60331 POWER CORD 6' 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 75 | 49004 PRESSURE SWITCH HOSE 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 76 | 44029 PRESSURE SWITCH 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 77 | SE69849 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 78 | PL69784 AIR INTAKE PLATE 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 79 | 30021 BLACK SELF TAPPING SCREW 8-32 "F" TYPE x 7/16" FLAT HEAD QUADREX 2 / appliance (sold individually) | CAD $13.00 | -- | |
| 80 | 30439 TENSION CLAMP 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 81 | PL64359 COMBUSTION FAN GASKET FRAME 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 82 | 21400 COMBUSTION BLOWER GASKET 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 83 | 44195 AXIAL BLOWER 115V 9W 92 x 92 x 38 (PLASTIC IMPELLER) 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 84 | PL69799 AIR CONTROL BRACKET 1 / appliance (sold individually) | CAD $49.00 | -- | |
| 85 | 30777 PLASTIC BACKDRAFT DAMPER ASSEMBLY 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 86 | 30502 SELF TAPING SCREW #8 - 32 x 1/2" TYPE F x 3/4 HEX FLAT HEAD 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 87 | 30556 AIR CONTROL FINISHING TIP 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 88 | 49400 3" TO 4" STAINLESS STEEL COLLAR 2 / appliance (sold individually) | CAD $21.00 | -- | |
| 89 | 21381 2 FOLD ALUMINUM LINER 3" x 6" COMPRESSED 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 90 | 60383 IGNITER JUNCTION WIRE 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 91 | 30100 BLACK HEX NUT 1/4 - 20 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 92 | 30185 BLACK WASHER 17/64" AA TYPE 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 93 | 44122 DOUBLE CAGE BLOWER 176 CFM (CLASS H) 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 94 | 30485 WING NUT 1/4-20 x 1/2" ZINC PLATTED 3 / appliance (sold individually) | CAD $6.00 | -- | |
| 95 | PL69805 CONVECTION FAN SUPPORT 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 96 | 30446 CARRIAGE BOLT 1/4 - 20 x 1" ZINC 4 / appliance (sold individually) | CAD $12.00 | -- | |
| 97 | PL69802 CLEANING ACCESS PANEL SUPPORT 1 / appliance (sold individually) | CAD $16.00 | -- | |
| 98 | SE69804 CLEANING ACCESS PANEL WITH GASKET 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 99 | 45876 USER MANUAL 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 100 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 101 | 44150 FUSE 3A / 250V (5 mm x 20 mm) 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 102 | 44199 SLOW BLOW GLASS FUSE 1.25A / 250V (5 MM X 20 MM) SLOW BLOW GLASS FUSE 1.25A / 250V (5 MM X 20 MM) 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 104 | SE69990 ECO-55 SD CARD 1 / appliance (sold individually) | CAD $65.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
