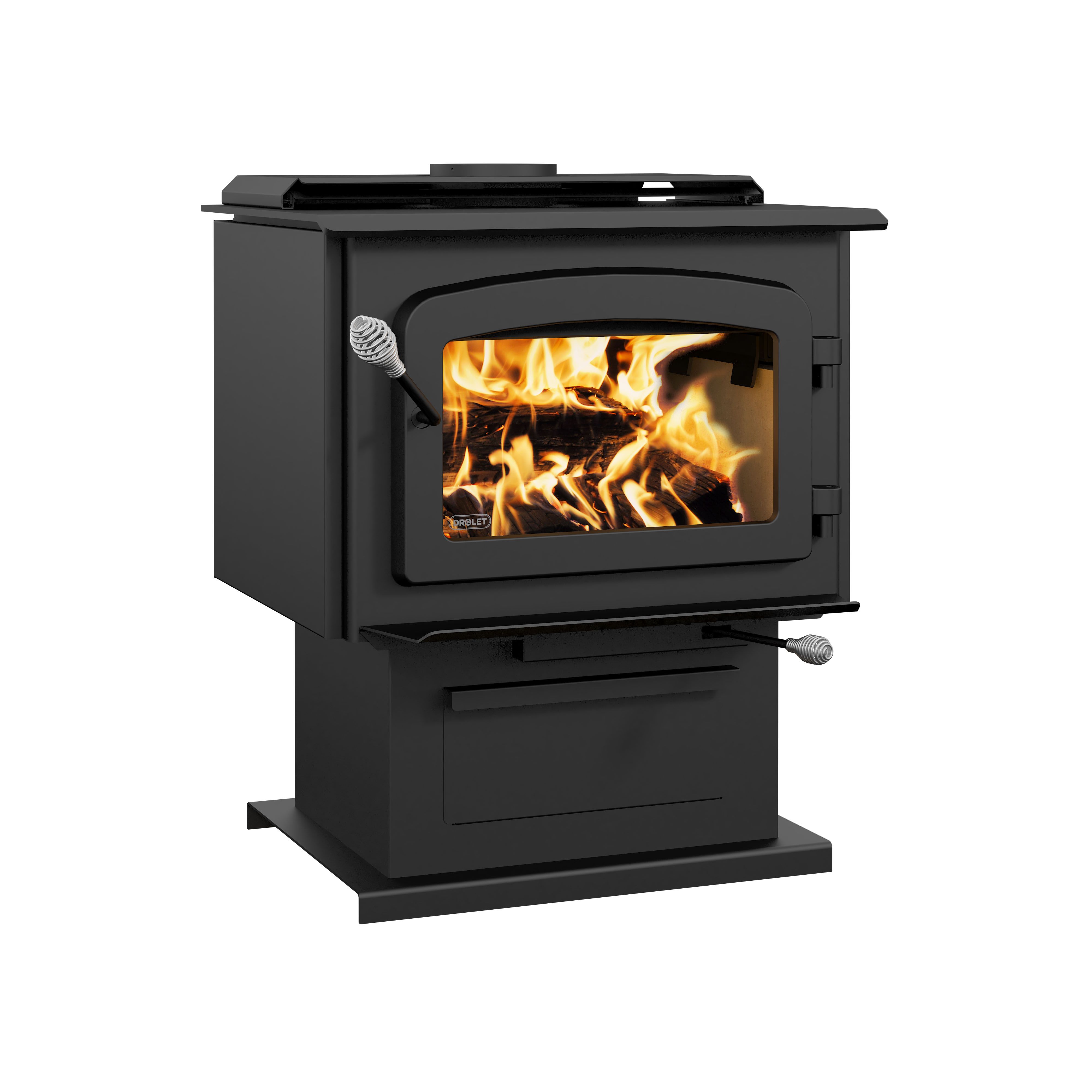

ESCAPE 1800

DB03102

Review this product

CAD $1,799.00

Heating area500 - 2,100 ft²

RECOMMENDED AREA MAP BY CLIMATE ZONE

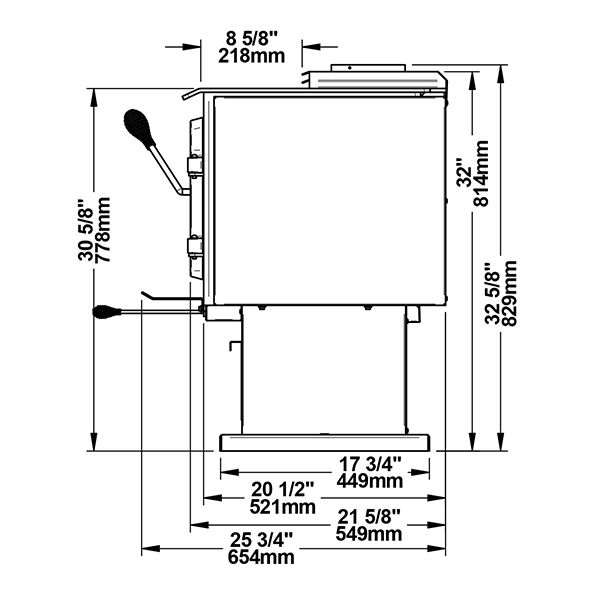

Size25 5/8" W X 25 3/4" D X 32 5/8" H

Maximum log length20"

Average particulate emission rate2.3 g/h

Description

Ideal for spaces up to 2,100 ft², this large non-catalytic wood stove produces up to 75,000 BTU/h and emits only 2.3 g/h of fine particles. The unit is equipped with side panels that reduce clearances to combustible materials, and a top heat exchanger that redirects heat to the front of the unit.

Included: pedestal with ash drawer, top air deflector, ceramic glass, side panels, ash lip, air damper

▪ Up to 8 hours burn time
▪ Up to 20" logs
▪ 2.4 ft³ firebox
▪ Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
▪ EPA certified
▪ Proudly made in Canada
▪ Limited lifetime warranty
▪ Certified for mobile home and alcove installation
▪ This model qualifies for the US tax credit

Any installation must be done according to the data and drawings detailed in the owner’s manual.

MANUFACTURER PROMOTION
Get a $100 mail-in rebate with the purchase of an Escape 1800 (DB03102) wood stove. Hurry, this offer is valid on purchases made from December 1st to 31st, 2024. For more details and claim your rebate: https://www.drolet.ca/ca/en/promotions/

Options

Specifications

Fuel type	Dry cordwood (16" recommended)
Heating area (9)	500 - 2,100 ft²
Overall firebox volume	2.4 ft³
EPA loading volume	1.95 ft³
Maximum burn time (9)	8 h
Maximum heat output-dry cordwood (4)	75,000 BTU/h (22 kW)
Minimum overall heat output rate (4) (5)	14,200 BTU/h (4.16 kW)
Maximum overall heat output rate (4) (5)	44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV) (5) (6)	72 %
Average overall efficiency-dry cordwood (LHV) (5) (7)	77 %
Optimum efficiency (1) (2)	79 %
Optimum heat transfer efficiency (8)	76 %
Average particulate emission rate (3)	2.3 g/h
Average CO (10)	69 g/h
Size	Large
Alcove installation approved	Yes
Mobile home approved	Yes, with fresh air intake
Certified according to applicable standards	By an accredited laboratory (CAN/USA)

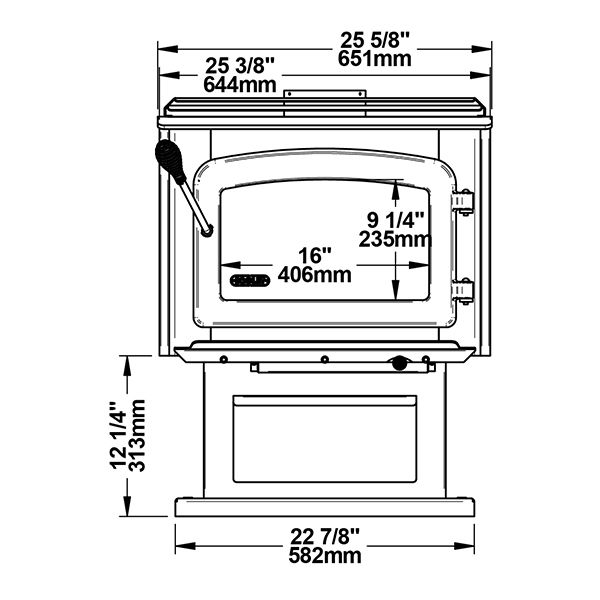

Overall dimension (Width)	25 5/8"
Overall dimension (Height)	32 5/8"
Overall dimension (Depth)	25 3/4"
Premium quality blower included (CFM)	Optional
Combustion technology	Non-catalytic
Stainless-steel secondary-air system	Yes

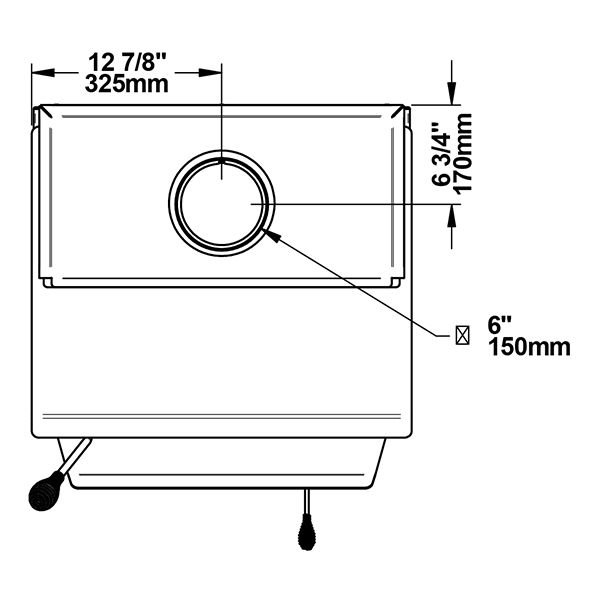

Flue outlet diameter	6"
Distance-center of the flue outlet to back unit	6 3/4"

Distance-center of the flue outlet to side unit	12 7/8"
Recommended chimney diameter	6"
Type of chimney	CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height	12'
Door type	Single, glass with cast iron frame
Door opening size (Width)	17 1/2"
Door opening size (Height)	9"
Glass type	Ceramic glass
Glass surface - W x H	16" x 9 1/4"
Steel thickness-body	3/16"
Steel thickness-top	5/16"
Firebox size (Width)	21"
Firebox size (Height)	12"
Firebox size (Depth)	16 1/2"
Log positioning	Loading over width
Maximum log length	20"
Firebox lined with refractory bricks	Yes
Baffle type	High quality vermiculite
High-efficiency certified appliance	Yes, EPA 2020 approved
Canadian Standard (emissions)	CSA B415.1-10
USA Standard (emissions)	EPA / ASTM WK47329
Canadian Standard (safety)	ULC S627
USA Standard (safety)	UL 1482, UL 737
Warranty	Limited lifetime
Shipping weight	382 lb (173 kg)

Clearances to combustibles*	Canada United-States
	Single wall pipeDouble wall pipeSingle wall pipeDouble wall pipe
Clearance - Back wall	14 1/2"6"11"6"
Clearance - Corner	10"7"10"7"
Clearance - Side wall	17"17"16"16"
Clearance - Base of the unit to ceiling**	84"84"84"84"

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.
