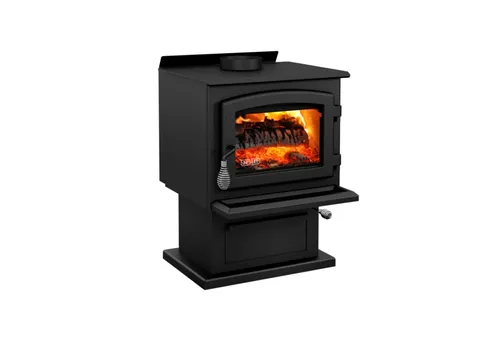

SAVANNAH
DB03025Serial Numbers: 29840 to 31864

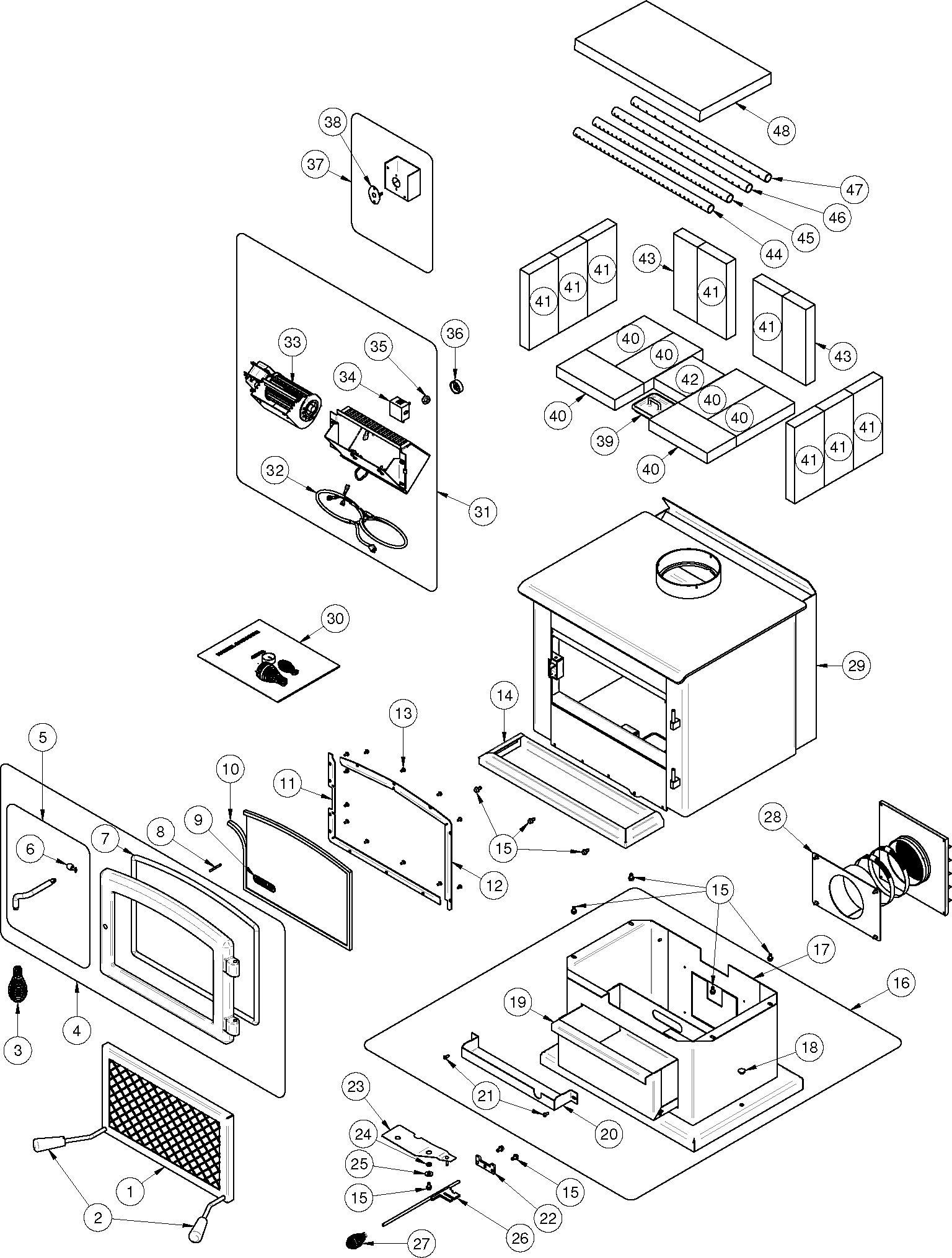

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC01342 RIGID FIRESCREEN 1 / appliance (sold individually) | USD $180.00 | -- | |
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | USD $15.00 | -- | |
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | USD $7.00 | -- | |
| 4 | SE24219-01 CAST IRON DOOR WITH GASKET, HANDLE AND LATCH 1 / appliance (sold individually) | USD $220.00 | -- | |
| 5 | AC09155 HANDLE & LATCH KIT 1 / appliance (sold individually) | USD $55.00 | -- | |
| 6 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | USD $30.00 | -- | |
| 7 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $14.00 | -- | |
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | USD $2.00 | -- | |
| 9 | SE54699 14 9/16" x 10" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | USD $180.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $10.00 | -- | |
| 11 | PL54703 LOWER GLASS RETAINER 1 / appliance (sold individually) | USD $31.00 | -- | |
| 12 | PL54704 UPPER GLASS RETAINER 1 / appliance (sold individually) | USD $31.00 | -- | |
| 13 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 12 / appliance (sold individually) | USD $1.00 | -- | |
| 14 | PL54718 ASH LIP 1 / appliance (sold individually) | USD $70.00 | -- | |
| 15 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 10 / appliance (sold individually) | USD $1.00 | -- | |
| 16 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 17 | PL54640 BACK BASE 1 / appliance (sold individually) | USD $39.00 | -- | |
| 18 | 30418 FINISHING PLUG 3/8" 2 / appliance (sold individually) | USD $16.00 | -- | |
| 19 | SE54638 ASH DRAWER ASSEMBLY 1 / appliance (sold individually) | USD $95.00 | -- | |
| 20 | PL54641 OUTSIDE FRONT AIR CAP 1 / appliance (sold individually) | USD $24.00 | -- | |
| 21 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 6 / appliance (sold individually) | USD $2.00 | -- | |
| 22 | PL65572 AIR CONTROL ROD GUIDE 1 / appliance (sold individually) | USD $5.00 | -- | |
| 23 | PL54697 PRIMARY AIR CONTROL PLATE 1 / appliance (sold individually) | USD $21.00 | -- | |
| 24 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | USD $1.00 | -- | |
| 25 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | USD $1.00 | -- | |
| 26 | SE54634 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | USD $24.00 | -- | |
| 27 | AC07869 3/8" BLACK COIL HANDLE 1 / appliance (sold individually) | USD $6.00 | -- | |
| 28 | AC01336 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | USD $90.00 | -- | |
| 29 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 30 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 31 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | USD $150.00 | -- | |
| 32 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | USD $20.00 | -- | |
| 33 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | USD $200.00 | -- | |
| 34 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | -- | |
| 35 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | -- | |
| 36 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | -- | |
| 37 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | USD $49.00 | -- | |
| 38 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | USD $25.00 | -- | |
| 39 | SE16059 ASH PLUG 1 / appliance (sold individually) | USD $25.00 | -- | |
| 40 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 6 / appliance (sold individually) | USD $3.50 | -- | |
| 41 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 8 / appliance (sold individually) | USD $10.00 | -- | |
| 42 | PL36062 4 1/2" x 5 1/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | -- | |
| 43 | PL36102 3 1/4" x 9" REFRACTORY BRICK 2 / appliance (sold individually) | USD $10.00 | -- | |
| 44 | PL54512 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $50.00 | -- | |
| 45 | PL54513 MIDDLE FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $40.00 | -- | |
| 46 | PL54514 MIDDLE REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $40.00 | -- | |
| 47 | PL54515 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $40.00 | -- | |
| 48 | 21397 17 1/8" x 9 3/4" x 1 1/4" BAFFLE VERMICULITE BOARD 1 / appliance (sold individually) | USD $40.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
