DB03030

AUSTRAL

100 to 21791

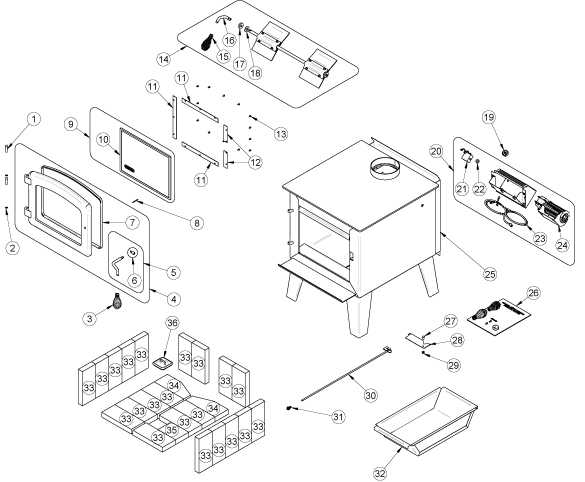

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
130170
HINGE PIN 5/16"Ø x 1 1/2" L
2 / appliance (sold individually)
--
230055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
--
3AC07860
1/2" BRASS COIL HANDLE
1 / appliance (sold individually)
--
4SE24035
DOOR ASSEMBLY WITH GASKET AND HANDLE WITHOUT GLASS
1 / appliance (sold individually)
USD $200.00
5AC09150
HANDLE & LATCH KIT
1 / appliance (sold individually)
USD $20.00
6AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
--
7AC06100
SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
USD $12.50
830101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
--
9SE30080
11 1/4" x 15 3/16" REMPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
USD $110.00
10AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
11PL30075
LONG GLASS RETAINER
3 / appliance (sold individually)
USD $8.50
12PL30076
SHORT GLASS RETAINER
2 / appliance (sold individually)
USD $6.00
1330124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
13 / appliance (sold individually)
--
14AC04090
NG-1800 SMOKE BY-PASS DAMPER KIT
1 / appliance (sold individually)
USD $220.00
15AC07868
1/2" BLACK COIL HANDLE
1 / appliance (sold individually)
--
16PL52683
REMOVABLE HANDLE
1 / appliance (sold individually)
USD $11.50
1721120
INSULATING WASHER
2 / appliance (sold individually)
USD $3.00
18PL30257
PROTECTION WASHER
2 / appliance (sold individually)
USD $1.75
1944085
RHEOSTAT KNOB
1 / appliance (sold individually)
--
20AC02050
BLOWER WITH VARIABLE SPEED CONTROL (100 CFM)
1 / appliance (sold individually)
--
2144080
RHEOSTAT WITHOUT NUT
1 / appliance (sold individually)
--
2244087
RHEOSTAT NUT
1 / appliance (sold individually)
--
2360013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
--
2444073
CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM
1 / appliance (sold individually)
--
2599999
BUILD TO ORDER
1 / appliance (sold individually)
--
2699998
DISCONTINUED
1 / appliance (sold individually)
----
2730096
1/4-20 x 3/4" ZINC CARRIAGE BOLT
1 / appliance (sold individually)
USD $1.25
28SE30028
AIR CONTROL DAMPER
1 / appliance (sold individually)
USD $41.00
2930220
FLANGED LOCKNUT 1/4-20
1 / appliance (sold individually)
--
30SE30073
AIR CONTROL ROD ASSEMBLY
1 / appliance (sold individually)
USD $39.00
31AC07861
1/4" BRASS COIL HANDLE
1 / appliance (sold individually)
--
32SE30055
ASH DRAWER
1 / appliance (sold individually)
USD $40.00
3329015
4" x 9" x 1 1/4" REFRACTORY BRICK
21 / appliance (sold individually)
--
34PL36054
4" x 9" x 2 1/16" x 4 3/4" REFRACTORY BRICK
2 / appliance (sold individually)
USD $6.00
35PL36022
4" x 5 1/4" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
USD $6.00
36SE16059
ASH PLUG
1 / appliance (sold individually)
--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
