DB03040

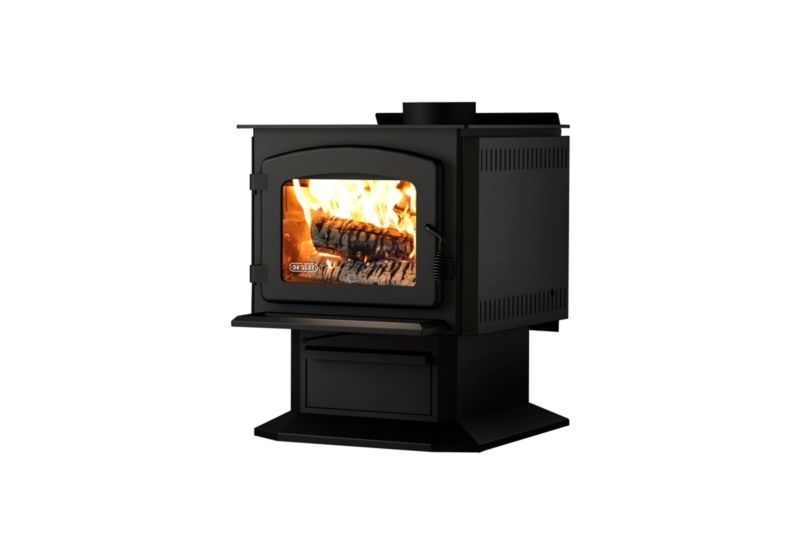

BALTIC

9830 to 16338

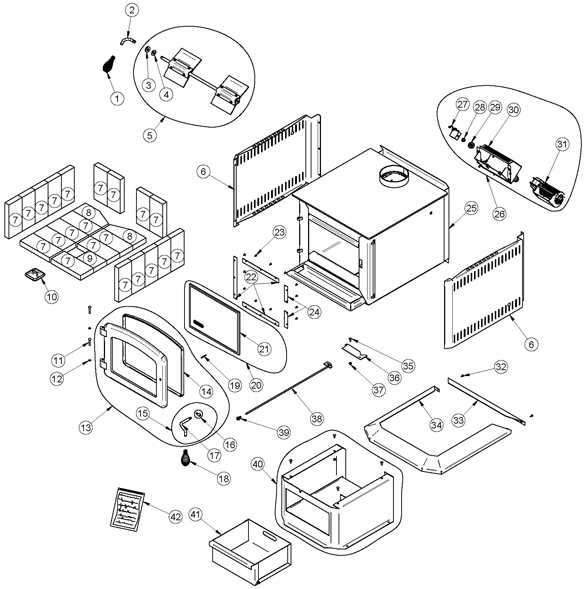

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC07868
1/2" BLACK COIL HANDLE
1 / appliance (sold individually)
--
2PL52683
REMOVABLE HANDLE
1 / appliance (sold individually)
USD $11.50
321120
INSULATING WASHER
1 / appliance (sold individually)
USD $3.00
4PL30257
PROTECTION WASHER
1 / appliance (sold individually)
USD $1.75
5AC04090
NG-1800 SMOKE BY-PASS DAMPER KIT
1 / appliance (sold individually)
USD $220.00
6PL30039
LEFT AND RIGHT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
USD $110.00
729015
4" x 9" x 1 1/4" REFRACTORY BRICK
21 / appliance (sold individually)
--
8PL36054
4" x 9" x 2 1/16" x 4 3/4" REFRACTORY BRICK
2 / appliance (sold individually)
USD $6.00
9PL36022
4" x 5 1/4" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
USD $6.00
10SE16059
ASH PLUG
1 / appliance (sold individually)
--
1130170
HINGE PIN 5/16"Ø x 1 1/2" L
2 / appliance (sold individually)
--
1230055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
--
13SE24035
DOOR ASSEMBLY WITH GASKET AND HANDLE WITHOUT GLASS
1 / appliance (sold individually)
USD $200.00
14AC06100
SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
USD $12.50
15AC09150
HANDLE & LATCH KIT
1 / appliance (sold individually)
USD $20.00
16AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
--
17PL08435-01
DOOR HANDLE SHAFT
1 / appliance (sold individually)
USD $29.00
18AC07860
1/2" BRASS COIL HANDLE
1 / appliance (sold individually)
--
1930101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
--
20SE30080
11 1/4" x 15 3/16" REMPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
USD $110.00
21AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
22PL30075
LONG GLASS RETAINER
3 / appliance (sold individually)
USD $8.50
2330124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
13 / appliance (sold individually)
--
24PL30076
SHORT GLASS RETAINER
2 / appliance (sold individually)
USD $6.00
2599999
BUILD TO ORDER
1 / appliance (sold individually)
--
26AC02050
BLOWER WITH VARIABLE SPEED CONTROL (100 CFM)
1 / appliance (sold individually)
--
2744080
RHEOSTAT WITHOUT NUT
1 / appliance (sold individually)
--
2844087
RHEOSTAT NUT
1 / appliance (sold individually)
--
2944085
RHEOSTAT KNOB
1 / appliance (sold individually)
--
3099999
BUILD TO ORDER
1 / appliance (sold individually)
--
3144073
CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM
1 / appliance (sold individually)
--
3230131
BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX
2 / appliance (sold individually)
--
33PL30058
REAR OF PEDESTAL SURROUND
1 / appliance (sold individually)
USD $34.00
34PL30038
U SHAPED PEDESTAL SURROUND
1 / appliance (sold individually)
USD $75.00
3530096
1/4-20 x 3/4" ZINC CARRIAGE BOLT
1 / appliance (sold individually)
USD $1.25
36SE30028
AIR CONTROL DAMPER
1 / appliance (sold individually)
USD $41.00
3730220
FLANGED LOCKNUT 1/4-20
1 / appliance (sold individually)
--
38SE30073
AIR CONTROL ROD ASSEMBLY
1 / appliance (sold individually)
USD $39.00
39AC07861
1/4" BRASS COIL HANDLE
1 / appliance (sold individually)
--
4099999
BUILD TO ORDER
1 / appliance (sold individually)
--
41SE08304-03
ASH DRAWER
1 / appliance (sold individually)
--
4299998
DISCONTINUED
1 / appliance (sold individually)
----

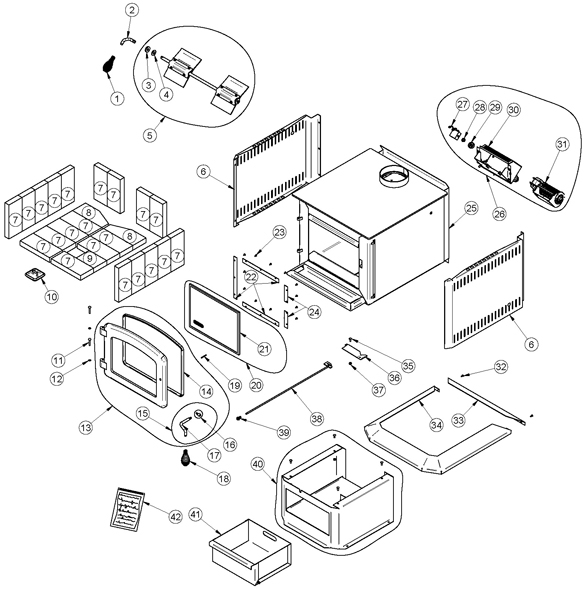

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
