DB03060

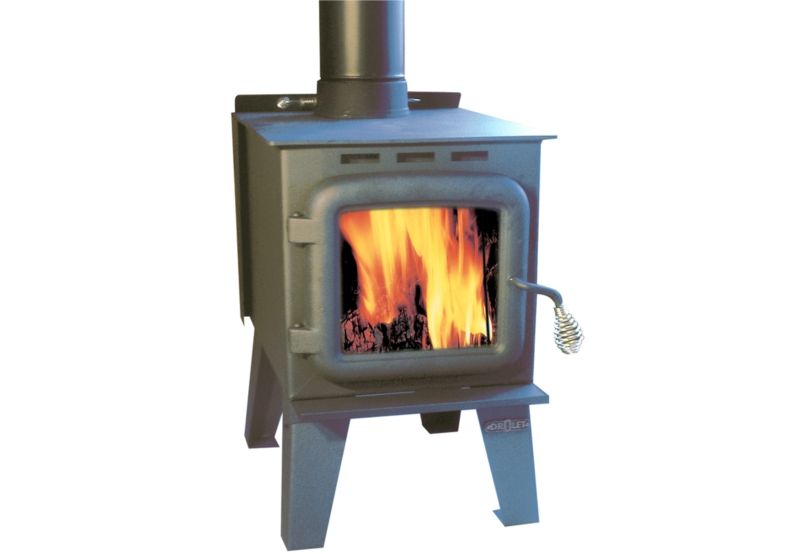

COMPAK

4647 to 5801

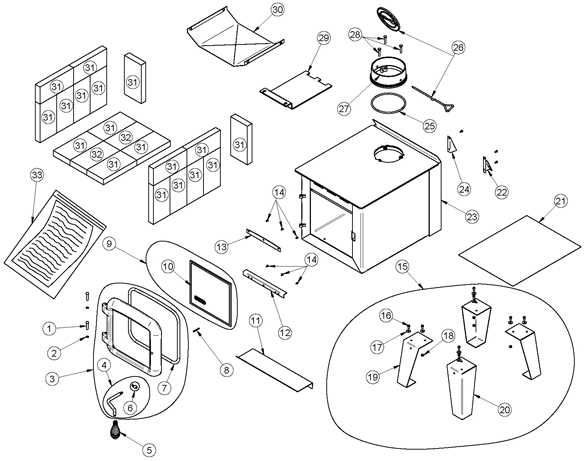

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
130170
HINGE PIN 5/16"Ø x 1 1/2" L
2 / appliance (sold individually)
--
230055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
--
399998
DISCONTINUED
1 / appliance (sold individually)
----
4AC09160
HANDLE &LATCH KIT
1 / appliance (sold individually)
USD $26.00
5AC07860
1/2" BRASS COIL HANDLE
1 / appliance (sold individually)
--
6AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
--
7AC06000
SILICONE & 1/2" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
830101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
--
9SE20207
9 29/32" x 10 29/32" REPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
USD $60.00
10AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
11PL03610-01
ASH LIP
1 / appliance (sold individually)
USD $49.00
12PL31006
BOTTOM GLASS RETAINER
1 / appliance (sold individually)
USD $26.00
13PL20214
TOP GLASS RETAINER
1 / appliance (sold individually)
USD $8.50
1430124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
6 / appliance (sold individually)
--
15SE03305-02
LEG KIT (4)
1 / appliance (sold individually)
USD $130.00
1630025
BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX
8 / appliance (sold individually)
--
1730501
BLACK WASHER #10
8 / appliance (sold individually)
USD $12.00
1830100
BLACK HEX NUT 1/4 - 20
8 / appliance (sold individually)
USD $0.60
19PL03305-01
RIGHT LEG
2 / appliance (sold individually)
USD $44.00
20PL03305
LEFT LEG
2 / appliance (sold individually)
USD $44.00
21PL03639-01
UNDERSIDE HEAT SHIELD
1 / appliance (sold individually)
USD $49.00
22SE06748
SUPPORT FOR THE BLOWER AC02050
2 / appliance (sold individually)
--
2399999
BUILD TO ORDER
1 / appliance (sold individually)
--
24SE06748
SUPPORT FOR THE BLOWER AC02050
2 / appliance (sold individually)
--
2540030
6 mm GASKET (PRICE FOR 1 LINEAR FOOT)
1 / appliance (sold individually)
USD $3.00
2624097
6" CAST IRON FLUE DAMPER
1 / appliance (sold individually)
USD $17.00
27PL24095
6" CAST IRON FLUE COLLAR
1 / appliance (sold individually)
USD $31.00
2830411
BOLT 5/16-18 x 1 1/2" HEX GRADE 2
3 / appliance (sold individually)
USD $8.50
2899998
DISCONTINUED
1 / appliance (sold individually)
----
29PL31003
INNER SMOKE BAFFLE
1 / appliance (sold individually)
USD $17.00
30PL31016
BAFFLE
1 / appliance (sold individually)
USD $37.00
3129010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
18 / appliance (sold individually)
--
3229015
4" x 9" x 1 1/4" REFRACTORY BRICK
2 / appliance (sold individually)
--
33SE45109
EE1200 SERIE MANUEL KIT
1 / appliance (sold individually)
USD $31.00

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
