DB03081-1

CLASSIC WITH BLOWER

9986 to 14020

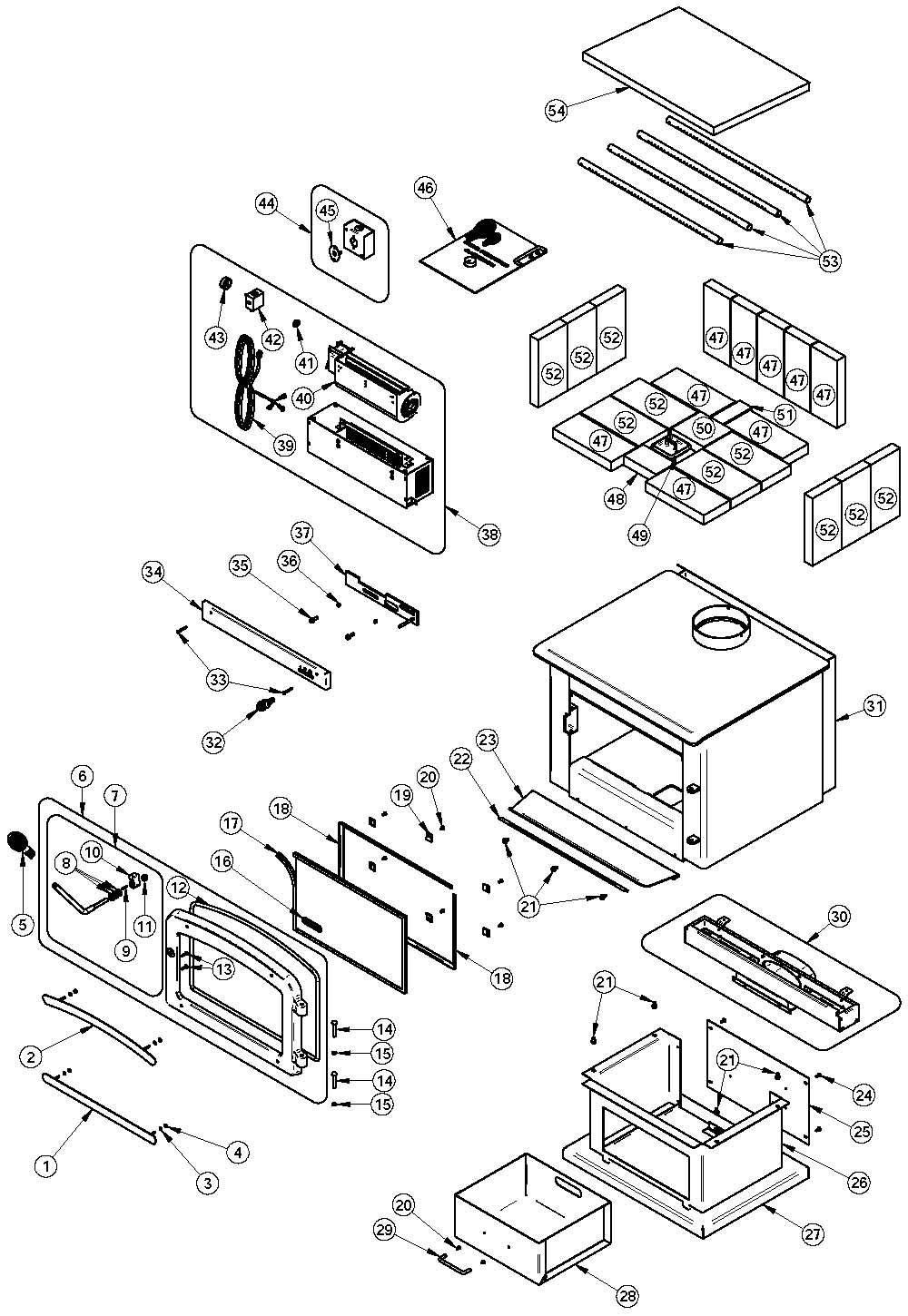

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1PL55101
DECORATIVE BOTTOM DOOR TRIM
1 / appliance (sold individually)
USD $45.00--
2PL55102
DECORATIVE TOP DOOR TRIM
1 / appliance (sold individually)
USD $34.00--
330208
WASHER ID 5/32" x OD 7/16"
4 / appliance (sold individually)
USD $12.00--
430417
BLACK HEX NUT #8-32
4 / appliance (sold individually)
----
5AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
----
6SE24107-06
BLACK CAST IRON DOOR WITH GASKET AND HANDLE
1 / appliance (sold individually)
USD $170.00--
7AC09171
REMPLACEMENT HANDLE & LATCH KIT
1 / appliance (sold individually)
USD $37.00--
830205
ZINC WASHER ID 13/32" x OD 13/16"
3 / appliance (sold individually)
----
930533
LATCH KEY PATH PIN
1 / appliance (sold individually)
USD $2.00--
1030033
STEEL DOOR LATCH
1 / appliance (sold individually)
USD $10.00--
1130224
LOCKNUT 3/8"-16 HEX
1 / appliance (sold individually)
USD $1.00--
12AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
----
1330123
SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC
2 / appliance (sold individually)
----
1430169
DOOR HINGE PIN 5/16"O x 1 3/4" L
2 / appliance (sold individually)
USD $1.00--
1530055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
----
16SE55103
10 3/16" x 17 1/8" REMPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
USD $130.00--
17AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
----
18PL55041
GLASS RETAINER FRAME
2 / appliance (sold individually)
USD $10.00--
19SE53585
GLASS RETAINER KIT WITH SCREWS (12 UNITS)
1 / appliance (sold individually)
----
2030124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
8 / appliance (sold individually)
----
2130060
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC
7 / appliance (sold individually)
----
22PL06703-01
NICKEL DECORATIVE ASH SHELF TRIM
1 / appliance (sold individually)
USD $20.00--
23PL55076
ASH LIP
1 / appliance (sold individually)
----
2430131
BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX
4 / appliance (sold individually)
----
28SE47076
ASH DRAWER
1 / appliance (sold individually)
USD $47.00--
2928061
CHROME ASH DRAWER HANDLE
1 / appliance (sold individually)
USD $7.00--
30AC01337
5"Ø FRESH AIR INTAKE KIT
1 / appliance (sold individually)
----
32AC07863
1/4" CHROME LONG COIL HANDLE
1 / appliance (sold individually)
----
3330125
MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC
2 / appliance (sold individually)
----
34PL55077
AIR CONTROL COVER
1 / appliance (sold individually)
USD $10.00--
3530094
HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE
2 / appliance (sold individually)
----
3630428
BUSHING
2 / appliance (sold individually)
----
37SE63057
AIR CONTROL DAMPER ASSEMBLY
1 / appliance (sold individually)
----
38AC03095
BLOWER WITH VARIABLE SPEED CONTROL (UP TO 130 CFM)
1 / appliance (sold individually)
USD $190.00--
3960013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
----
4044070
CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W (B)
1 / appliance (sold individually)
----
4144080
RHEOSTAT WITHOUT NUT (AC-11)
1 / appliance (sold individually)
----
4244087
RHEOSTAT NUT
1 / appliance (sold individually)
----
4344085
RHEOSTAT KNOB
1 / appliance (sold individually)
----
4544028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
----
46SE45626
CLASSIC MANUAL KIT
1 / appliance (sold individually)
USD $31.00--
4729015
4" x 9" x 1 1/4" REFRACTORY BRICK
9 / appliance (sold individually)
----
48PL36074
4" x 2 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB2.5)
1 / appliance (sold individually)
----
49SE16059
ASH PLUG
1 / appliance (sold individually)
----
50PL36049
4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
----
51PL36024
1 7/8" x 4 1/2" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
----
5229010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
10 / appliance (sold individually)
----
53PL55095
SECONDARY AIR TUBE
4 / appliance (sold individually)
----
5421216
VERMICULITE BAFFLE CENTURY 90000161
1 / appliance (sold individually)
----

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
