CLASSIC WITH BLOWER
DB03081-2Serial Numbers: 14021 to 14120

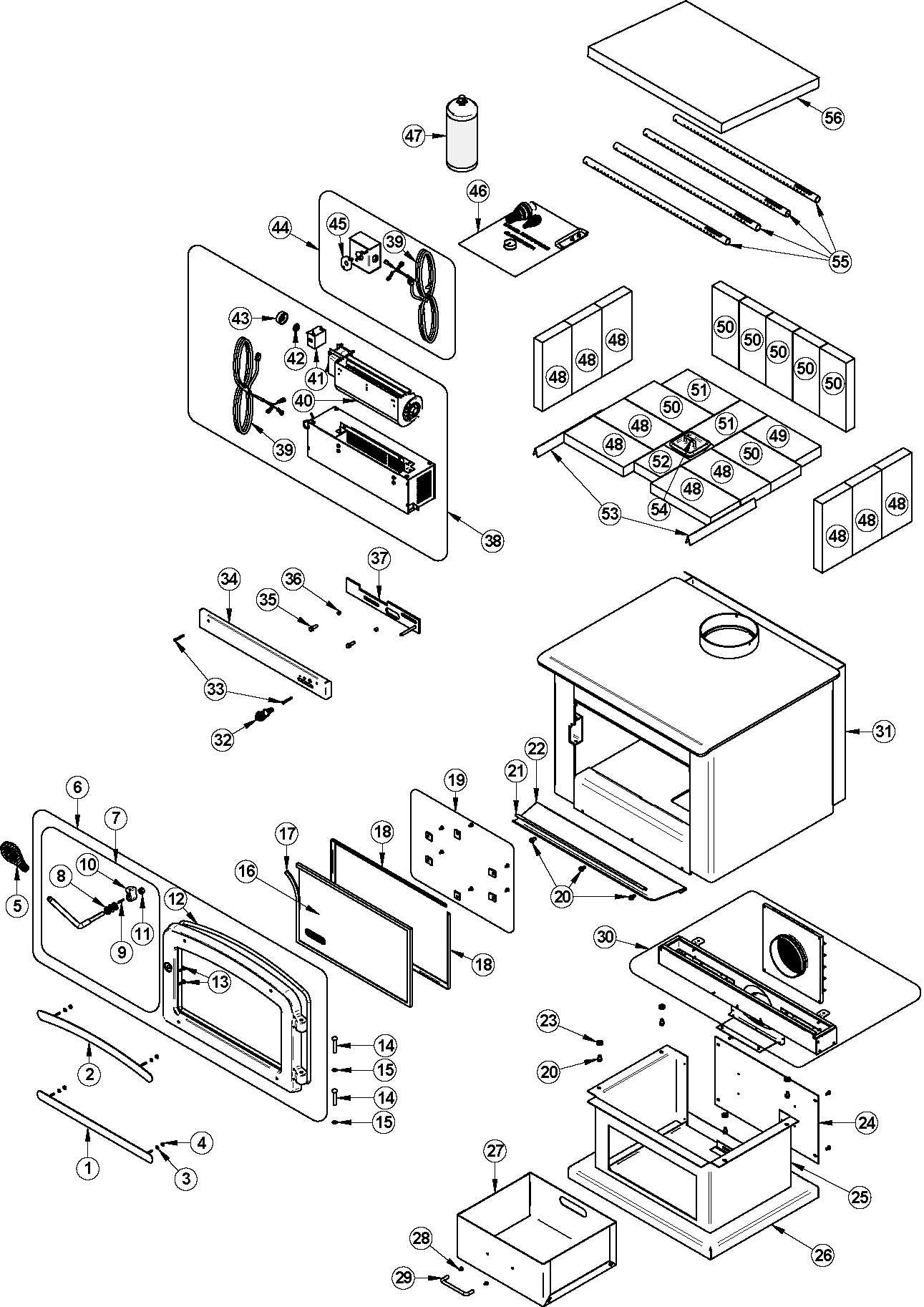

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | PL55101 DECORATIVE BOTTOM DOOR TRIM 1 / appliance (sold individually) | USD $65.00 | -- | |
| 2 | PL55102 BRUSHED NICKEL DECORATIVE TOP DOOR TRIM 1 / appliance (sold individually) | USD $50.00 | -- | |
| 3 | 30208 WASHER ID 5/32" x OD 7/16" 4 / appliance (sold individually) | USD $13.00 | -- | |
| 4 | 30417 BLACK HEX NUT #8-32 4 / appliance (sold individually) | USD $1.00 | -- | |
| 5 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | USD $7.00 | -- | |
| 6 | SE24107-06 BLACK CAST IRON DOOR WITH GASKET AND HANDLE 1 / appliance (sold individually) | USD $230.00 | -- | |
| 7 | AC09171 REPLACEMENT HANDLE & LATCH KIT 1 / appliance (sold individually) | USD $55.00 | -- | |
| 8 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 3 / appliance (sold individually) | USD $1.00 | -- | |
| 9 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | USD $3.00 | -- | |
| 10 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | USD $20.00 | -- | |
| 11 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | USD $2.00 | -- | |
| 12 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $17.00 | -- | |
| 13 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | USD $1.00 | -- | |
| 14 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | USD $2.00 | -- | |
| 15 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | USD $5.00 | -- | |
| 16 | SE55103 10 3/16" x 17 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | USD $200.00 | -- | |
| 17 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $10.00 | -- | |
| 18 | PL55041 GLASS RETAINER FRAME 2 / appliance (sold individually) | USD $15.00 | -- | |
| 19 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | USD $20.00 | -- | |
| 20 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 7 / appliance (sold individually) | USD $1.00 | -- | |
| 21 | PL06703-01 NICKEL DECORATIVE ASH SHELF TRIM 1 / appliance (sold individually) | USD $30.00 | -- | |
| 22 | PL55076 ASH LIP 1 / appliance (sold individually) | USD $39.00 | -- | |
| 23 | 30193 FLAT WASHER .281" IØ x .625" OØ x .188" BLACK OXIDE 4 / appliance (sold individually) | USD $5.00 | -- | |
| 24 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 25 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 26 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 27 | SE47076 ASH DRAWER 1 / appliance (sold individually) | USD $70.00 | -- | |
| 28 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 2 / appliance (sold individually) | USD $1.00 | -- | |
| 29 | 28061 CHROME ASH DRAWER HANDLE 1 / appliance (sold individually) | USD $10.00 | -- | |
| 30 | AC01337 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | USD $160.00 | -- | |
| 31 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 32 | AC07863 1/4" CHROME LONG COIL HANDLE 1 / appliance (sold individually) | USD $7.00 | -- | |
| 33 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 2 / appliance (sold individually) | USD $1.00 | -- | |
| 34 | PL55077 AIR CONTROL COVER 1 / appliance (sold individually) | USD $15.00 | -- | |
| 35 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | USD $2.00 | -- | |
| 36 | 30428 BUSHING 2 / appliance (sold individually) | USD $10.00 | -- | |
| 37 | SE63057 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | USD $15.00 | -- | |
| 38 | AC03095 BLOWER WITH VARIABLE SPEED CONTROL (UP TO 130 CFM) 1 / appliance (sold individually) | USD $220.00 | -- | |
| 39 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | USD $20.00 | -- | |
| 40 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | USD $190.00 | -- | |
| 41 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | -- | |
| 42 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | -- | |
| 43 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | -- | |
| 44 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | USD $49.00 | -- | |
| 45 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | USD $25.00 | -- | |
| 46 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 47 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $17.00 | -- | |
| 48 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 10 / appliance (sold individually) | USD $10.00 | -- | |
| 49 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $3.50 | -- | |
| 50 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 7 / appliance (sold individually) | USD $10.00 | -- | |
| 52 | PL36084 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB4.5) 1 / appliance (sold individually) | USD $10.00 | -- | |
| 53 | PL55108 BOTTOM BRICK RETAINER 2 / appliance (sold individually) | USD $21.00 | -- | |
| 54 | SE16059 ASH PLUG 1 / appliance (sold individually) | USD $25.00 | -- | |
| 55 | PL55095 SECONDARY AIR TUBE 4 / appliance (sold individually) | USD $50.00 | -- | |
| 56 | 21216 VERMICULITE BAFFLE CENTURY 90000161 1 / appliance (sold individually) | USD $90.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
