CLASSIC - BROWN
DB03085Serial Numbers: 8321 to 8970

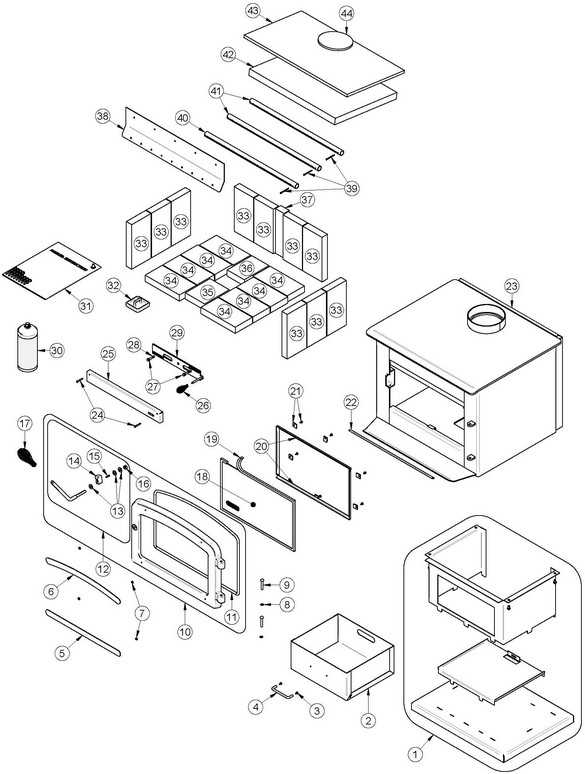

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 2 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 3 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 2 / appliance (sold individually) | USD $1.00 | -- | |
| 4 | 28060 GOLD ASH DRAWER HANDLE 1 / appliance (sold individually) | USD $21.00 | -- | |
| 5 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 6 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 7 | 30417 BLACK HEX NUT #8-32 4 / appliance (sold individually) | USD $1.00 | -- | |
| 8 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | USD $5.00 | -- | |
| 9 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | USD $2.00 | -- | |
| 10 | SE55042 REPLACEMENT DOOR WITH GASKET WITHOUT GLASS AND HANDLE 1 / appliance (sold individually) | USD $200.00 | -- | |
| 11 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $17.00 | -- | |
| 12 | AC09171 REPLACEMENT HANDLE & LATCH KIT 1 / appliance (sold individually) | USD $55.00 | -- | |
| 13 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 3 / appliance (sold individually) | USD $1.00 | -- | |
| 14 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | USD $20.00 | -- | |
| 15 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | USD $3.00 | -- | |
| 16 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | USD $2.00 | -- | |
| 17 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | USD $7.00 | -- | |
| 18 | SE55103 10 3/16" x 17 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | USD $200.00 | -- | |
| 19 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $10.00 | -- | |
| 20 | PL55041 GLASS RETAINER FRAME 2 / appliance (sold individually) | USD $15.00 | -- | |
| 21 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | USD $20.00 | -- | |
| 22 | PL06703 BRASS DECORATIVE ASH LIP TRIM 1 / appliance (sold individually) | USD $41.00 | -- | |
| 23 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 24 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 2 / appliance (sold individually) | USD $1.00 | -- | |
| 25 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 26 | AC07864 1/4" BRASS LONG COIL HANDLE 1 / appliance (sold individually) | USD $7.00 | -- | |
| 27 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | USD $2.00 | -- | |
| 28 | 30428 BUSHING 2 / appliance (sold individually) | USD $10.00 | -- | |
| 29 | SE55013 AIR CONTROL SLIDE 1 / appliance (sold individually) | USD $55.00 | -- | |
| 30 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $17.00 | -- | |
| 31 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 32 | SE16059 ASH PLUG 1 / appliance (sold individually) | USD $25.00 | -- | |
| 33 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 10 / appliance (sold individually) | USD $10.00 | -- | |
| 34 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 8 / appliance (sold individually) | USD $3.50 | -- | |
| 35 | PL36118 4 1/2" x 5 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $15.00 | -- | |
| 36 | PL36057 4" x 5 3/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | -- | |
| 37 | PL36056 2" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | -- | |
| 38 | SE55004 DEFLECTOR REPAIR KIT 1 / appliance (sold individually) | USD $85.00 | -- | |
| 39 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 1 / appliance (sold individually) | USD $10.00 | -- | |
| 40 | PL55038 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $75.00 | -- | |
| 41 | PL55037 MIDDLE OR REAR SECONDARY AIR TUBE 2 / appliance (sold individually) | USD $75.00 | -- | |
| 42 | 21202 VERMICULITE BAFFLE 20" x 14 1/2" x 1 1/4" 1 / appliance (sold individually) | USD $60.00 | -- | |
| 43 | 21137 13 1/2" x 24" x 1/2" BAFFLE INSULATION 1 / appliance (sold individually) | USD $30.00 | -- | |
| 44 | PL34026 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | USD $25.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
