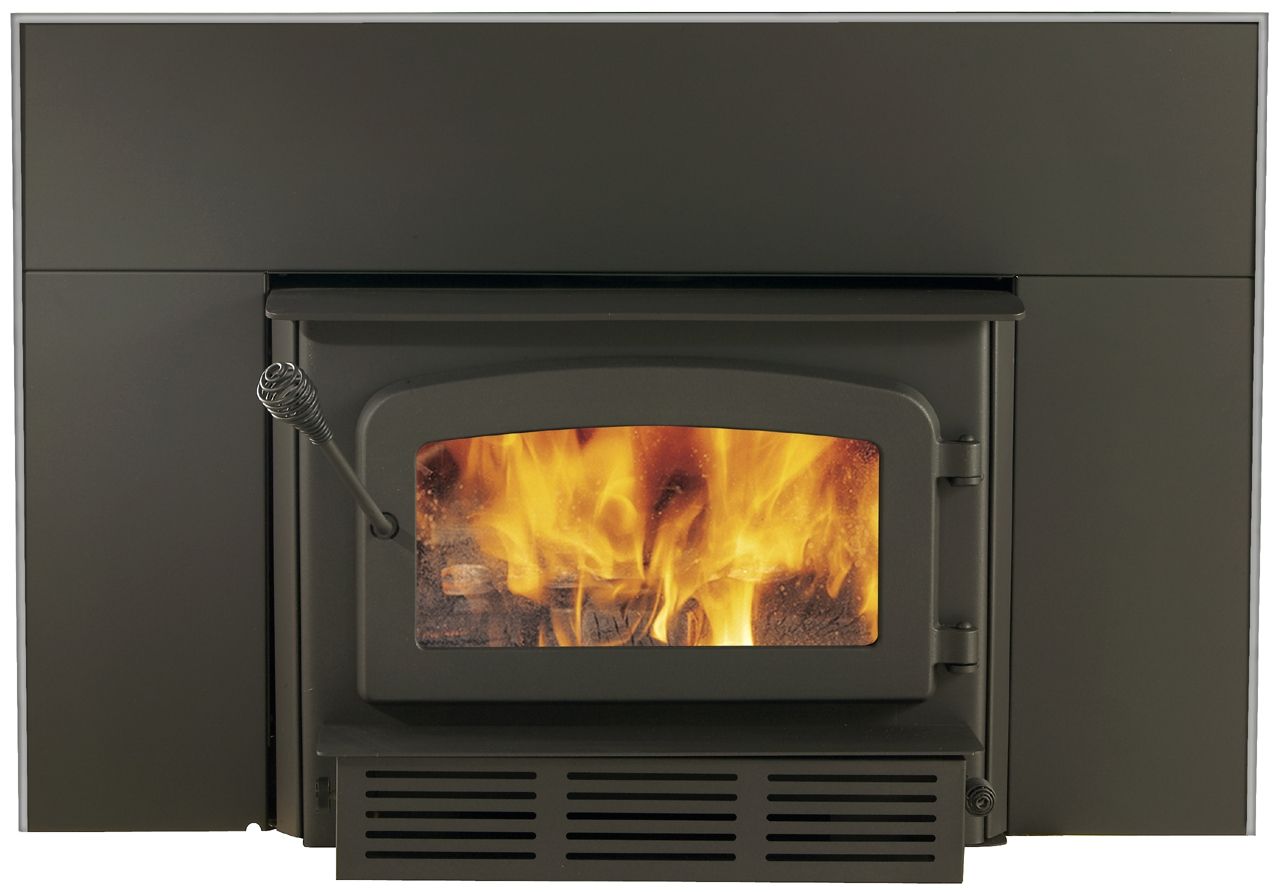

ESCAPE 1400-I
DB03120Serial Numbers: 379 to 10773
The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | USD $7.00 | -- | |
| 2 | AC09171 REMPLACEMENT HANDLE & LATCH KIT 1 / appliance (sold individually) | USD $55.00 | -- | |
| 3 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 3 / appliance (sold individually) | USD $1.00 | -- | |
| 4 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | USD $3.00 | -- | |
| 5 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | USD $20.00 | -- | |
| 6 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | USD $2.00 | -- | |
| 7 | SE53950 DOOR WITH GASKET WITHOUT HANDLE NOR GLASS 1 / appliance (sold individually) | USD $230.00 | -- | |
| 8 | AC06500 SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $17.00 | -- | |
| 9 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | USD $5.00 | -- | |
| 10 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | USD $2.00 | -- | |
| 11 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | USD $1.00 | -- | |
| 12 | SE53930 8 7/8" x 17" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | USD $180.00 | -- | |
| 13 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $10.00 | -- | |
| 14 | PL53910 GLASS RETAINER FRAME 2 / appliance (sold individually) | USD $15.00 | -- | |
| 15 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | USD $20.00 | -- | |
| 16 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | -- | |
| 17 | SE53904 BLOWER ASSEMBLY 1 / appliance (sold individually) | USD $300.00 | -- | |
| 18 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | -- | |
| 19 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | -- | |
| 20 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | USD $20.00 | -- | |
| 21 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | USD $25.00 | -- | |
| 22 | 44089 DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A 1 / appliance (sold individually) | USD $220.00 | -- | |
| 23 | PL53908 INSERT ASH SHELF 1 / appliance (sold individually) | USD $40.00 | -- | |
| 24 | 30102 1/4" CAST IRON AIR CONTROL HANDLE 1 / appliance (sold individually) | USD $20.00 | -- | |
| 25 | PL53616 AIR CONTROL ROD 1 / appliance (sold individually) | USD $26.00 | -- | |
| 26 | SE53529 AIR CONTROL DAMPER WITH HARDWARE 1 / appliance (sold individually) | USD $60.00 | -- | |
| 27 | PL53905 RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | USD $65.00 | -- | |
| 28 | 30337 SQUARE HEAD SET SCREW 1/2-13 x 1-3/4" 2 / appliance (sold individually) | USD $5.00 | -- | |
| 29 | PL34052 LINER FIXATION BRACKET 3 / appliance (sold individually) | USD $5.00 | -- | |
| 30 | PL53869 FACEPLATE EXTENSION 1 / appliance (sold individually) | USD $55.00 | -- | |
| 31 | PL53906 LEFT DECORATIVE PANEL 1 / appliance (sold individually) | USD $65.00 | -- | |
| 32 | 99998 DISCONTINUED 1 / appliance (sold individually) | USD $14.00 | -- | |
| 33 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $17.00 | -- | |
| 34 | SE15097 FACEPLATE HARDWARE KIT 1 / appliance (sold individually) | USD $25.00 | -- | |
| 35 | OA10123 BRUSHED NICKEL FACEPLATE TRIMS (29" X 44") 1 / appliance (sold individually) | USD $120.00 | -- | |
| 35 | OA10129 BRUSHED NICKEL FACEPLATE TRIMS (32" x 50") 1 / appliance (sold individually) | USD $120.00 | -- | |
| 36 | AC03350 ESCAPE 1400 REGULAR FACEPLATE 29" x 44" 1 / appliance (sold individually) | USD $200.00 | -- | |
| 37 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 15 / appliance (sold individually) | USD $3.50 | -- | |
| 38 | PL36026 3" x 8" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | USD $10.00 | -- | |
| 40 | PL36067 4 1/2" x 2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | -- | |
| 41 | PL53533 FRONT BAFFLE SUPPORT 1 / appliance (sold individually) | USD $35.00 | -- | |
| 42 | PL53516 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $60.00 | -- | |
| 43 | PL53517 REAR OR MIDDLE SECONDARY AIR TUBE 2 / appliance (sold individually) | USD $60.00 | -- | |
| 44 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 3 / appliance (sold individually) | USD $10.00 | -- | |
| 45 | 21204 20 1/2" x 9" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | USD $40.00 | -- | |
| 46.39 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 5 / appliance (sold individually) | USD $3.50 | -- | |
| 47 | 21037 23 1/2" x 10 1/2" x 1/2" BAFFLE INSULATION 1 / appliance (sold individually) | USD $30.00 | -- | |
| 48 | PL34026 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | USD $25.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
