DB03137

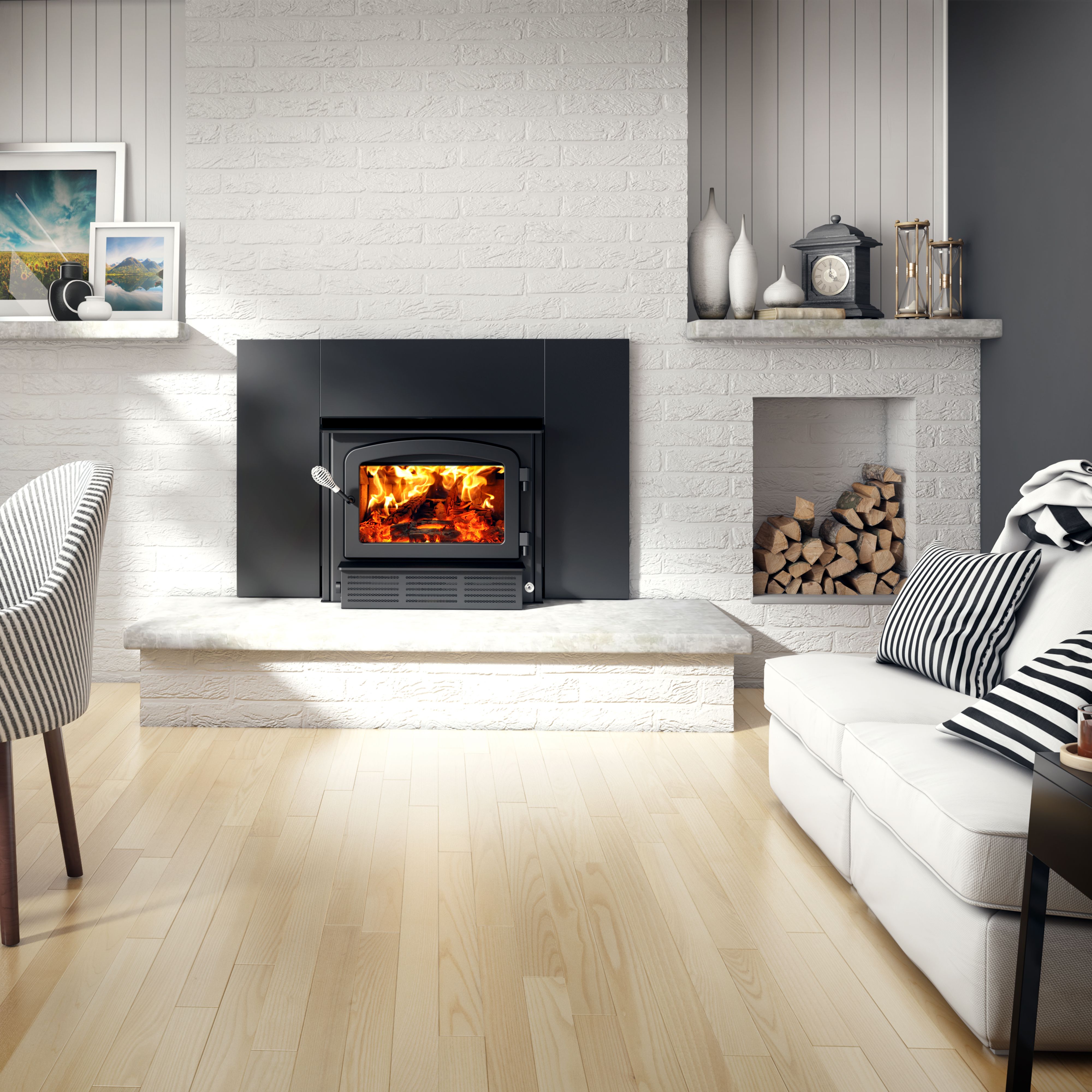

ESCAPE 1500-I WITH FACEPLATE

100 to ---

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC01299
RIGID FIRESCREEN
1 / appliance (sold individually)
--
230569
ROUND WOODEN HANDLE BLACK
2 / appliance (sold individually)
--
3AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
--
4AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
--
5SE70697
REPLACEMENT HANDLE WITH LATCH KIT
1 / appliance (sold individually)
USD $22.50
6AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
7SE24300
CAST IRON DOOR WITH HANDLE AND GASKET
1 / appliance (sold individually)
USD $240.00
830101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
--
9AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
10SE70700
16 3/4''W x 9 5/8''H x 10 3/4''H REPLACEMENT GLASS WITH GASKET ESCAPE 1500
1 / appliance (sold individually)
USD $100.00
11PL70676
LEFT GLASS FRAME
1 / appliance (sold individually)
USD $41.00
12PL70675
RIGHT GLASS FRAME
1 / appliance (sold individually)
USD $41.00
13SE53585
GLASS RETAINER KIT WITH SCREWS (12 UNITS)
1 / appliance (sold individually)
--
1430507
BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4"
3 / appliance (sold individually)
--
15SE70660
ASH SHELF
1 / appliance (sold individually)
USD $100.00
16PL70669
DECORATIVE PANEL
2 / appliance (sold individually)
USD $60.00
1730337
SQUARE HEAD SET SCREW 1/2-13 x 1-3/4"
2 / appliance (sold individually)
--
18PL70587
FACEPLATE EXTENSION
1 / appliance (sold individually)
USD $75.00
19PL34052
LINER FIXATION BRACKET
3 / appliance (sold individually)
--
2030187
STAINLESS WASHER ID 17/64" x OD 1/2"
1 / appliance (sold individually)
--
2130206
ZINC WASHER 5/16"ID x 3/4"OD
1 / appliance (sold individually)
--
2230064
3/16" x 1" CLEVIS PIN
1 / appliance (sold individually)
--
2330059
5/32" ID PUSHNUT
2 / appliance (sold individually)
--
24PL65562
AIR CONTROL DAMPER GUIDE
1 / appliance (sold individually)
--
2530160
METAL SCREW #8 x 3/4" QUADREX SELF TAPPING TEK
2 / appliance (sold individually)
--
26SE65559
AIR CONTROL ROD ASSEMBLY
1 / appliance (sold individually)
--
27AC07863
1/4" CHROME LONG COIL HANDLE
1 / appliance (sold individually)
--
28AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
--
2930506
SCREW PAN TORX TYPE F 1/4-20 x 1" BLACK
1 / appliance (sold individually)
--
30PL70586
DAMPER
1 / appliance (sold individually)
USD $26.00
31SE70656
BLOWER ASSEMBLY
1 / appliance (sold individually)
USD $250.00
3244089
DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A
1 / appliance (sold individually)
--
3344028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
--
3460013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
--
3544080
RHEOSTAT WITHOUT NUT
1 / appliance (sold individually)
--
3644087
RHEOSTAT NUT
1 / appliance (sold individually)
--
3744085
RHEOSTAT KNOB
1 / appliance (sold individually)
--
3829015
4" x 9" x 1 1/4" REFRACTORY BRICK
12 / appliance (sold individually)
--
3929010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
4 / appliance (sold individually)
--
40PL36031
3 5/8" x 9" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
USD $8.50
41PL70516
SECONDARY AIR TUBE
4 / appliance (sold individually)
--
4221586
18 7/8" x 9 1/2" x 1 1/4" VERMICULITE BAFFLE
1 / appliance (sold individually)
--
43SE70696
ESCAPE 1500 INSERT FACEPLATE
1 / appliance (sold individually)
USD $120.00
44PL70696
29" x 44" FACEPLATE TOP PANEL
1 / appliance (sold individually)
USD $65.00
45PL70695
29" x 44" FACEPLATE SIDE PANEL
2 / appliance (sold individually)
USD $65.00
46AC01298
5"Ø FRESH AIR INTAKE KIT
1 / appliance (sold individually)
--
47SE45997
ESCAPE 1500 INSERT INSTRUCTIONS MANUAL KIT
1 / appliance (sold individually)
USD $65.00
0SE74167
DOOR HINGE REPLACEMENT KIT
/ appliance (sold individually)
USD $43.00

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
