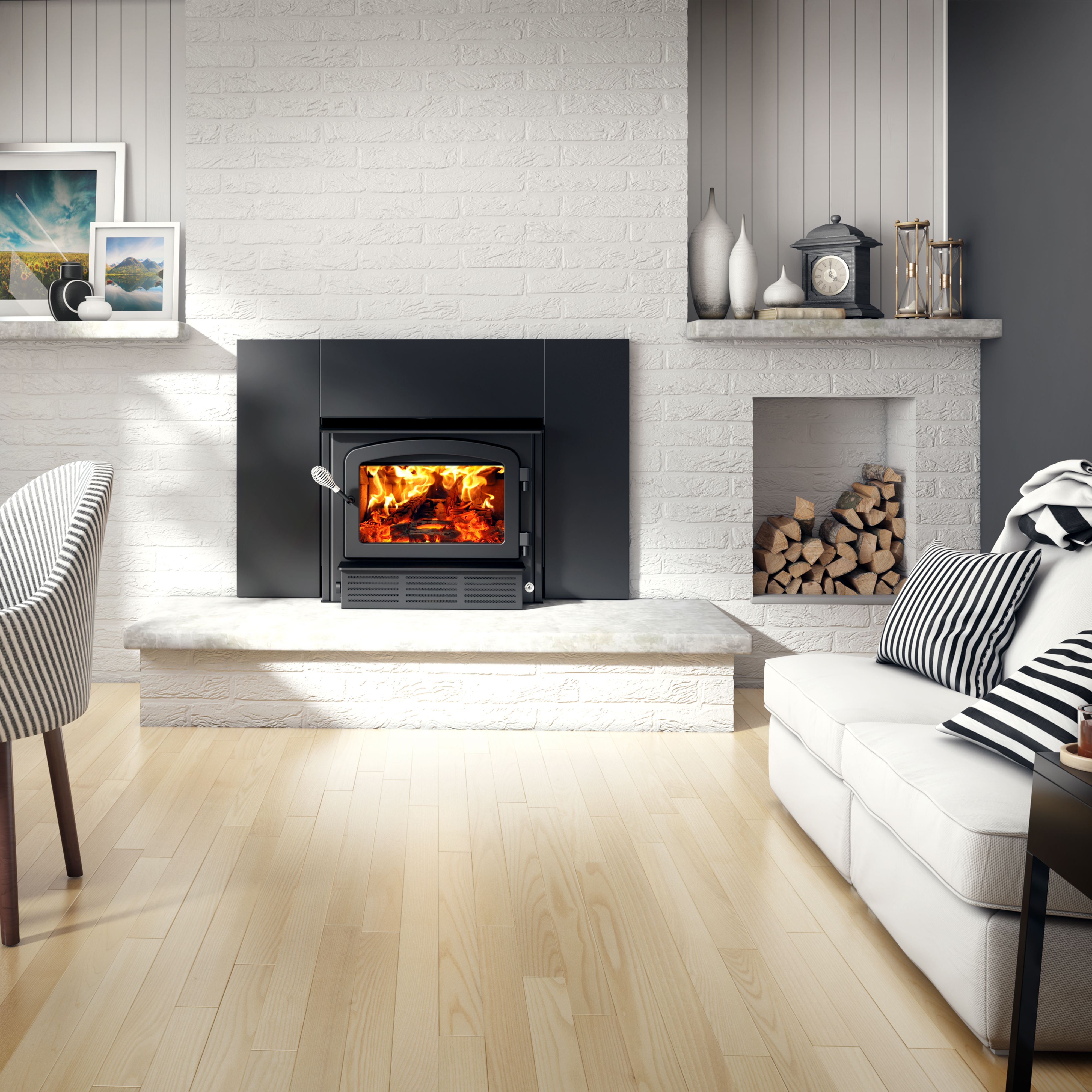

ESCAPE 1500-I - WITH TRIO 25'
DB03137K-1Serial Numbers: 100 to 1759
The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC01299 RIGID FIRESCREEN 1 / appliance (sold individually) | USD $140.00 | -- | |
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | USD $15.00 | -- | |
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | USD $7.00 | -- | |
| 4 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | USD $30.00 | -- | |
| 5 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | USD $40.00 | -- | |
| 6 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $17.00 | -- | |
| 7 | SE24300 CAST IRON DOOR WITH HANDLE AND GASKET 1 / appliance (sold individually) | USD $230.00 | -- | |
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | USD $2.00 | -- | |
| 9 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $10.00 | -- | |
| 10 | SE70700 16 3/4"W x 9 5/8"H x 10 3/4"H GLASS WITH GASKET 1 / appliance (sold individually) | USD $170.00 | -- | |
| 11 | PL70676 LEFT GLASS FRAME 1 / appliance (sold individually) | USD $41.00 | -- | |
| 12 | PL70675 RIGHT GLASS FRAME 1 / appliance (sold individually) | USD $41.00 | -- | |
| 13 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | USD $20.00 | -- | |
| 14 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 3 / appliance (sold individually) | USD $2.00 | -- | |
| 15 | SE70660 ASH SHELF 1 / appliance (sold individually) | USD $110.00 | -- | |
| 16 | PL70669 DECORATIVE PANEL 2 / appliance (sold individually) | USD $60.00 | -- | |
| 17 | 30337 SQUARE HEAD SET SCREW 1/2-13 x 1-3/4" 2 / appliance (sold individually) | USD $5.00 | -- | |
| 18 | PL70587 FACEPLATE EXTENSION 1 / appliance (sold individually) | USD $75.00 | -- | |
| 19 | PL34052 LINER FIXATION BRACKET 3 / appliance (sold individually) | USD $5.00 | -- | |
| 20 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | USD $1.00 | -- | |
| 21 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | USD $1.00 | -- | |
| 22 | 30064 3/16" x 1" CLEVIS PIN 1 / appliance (sold individually) | USD $13.00 | -- | |
| 23 | 30059 5/32" I⌀ PUSHNUT 2 / appliance (sold individually) | USD $12.00 | -- | |
| 24 | PL65562 AIR CONTROL DAMPER GUIDE 1 / appliance (sold individually) | USD $31.00 | -- | |
| 25 | 30160 BLACK METAL SCREW #8 x 3/4" QUADREX SELF TAPPING TEK 2 / appliance (sold individually) | USD $1.00 | -- | |
| 26 | SE65559 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | USD $26.00 | -- | |
| 27 | AC07863 1/4" CHROME LONG COIL HANDLE 1 / appliance (sold individually) | USD $7.00 | -- | |
| 28 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $17.00 | -- | |
| 29 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 1 / appliance (sold individually) | USD $1.00 | -- | |
| 30 | PL70586 DAMPER 1 / appliance (sold individually) | USD $26.00 | -- | |
| 31 | SE70656 BLOWER ASSEMBLY 1 / appliance (sold individually) | USD $300.00 | -- | |
| 32 | 44089 DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A 1 / appliance (sold individually) | USD $220.00 | -- | |
| 33 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | USD $25.00 | -- | |
| 34 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | USD $20.00 | -- | |
| 35 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | -- | |
| 36 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | -- | |
| 37 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | -- | |
| 38 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | USD $10.00 | -- | |
| 39 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | USD $10.00 | -- | |
| 40 | PL36031 3 5/8" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $15.00 | -- | |
| 41 | PL70516 SECONDARY AIR TUBE 4 / appliance (sold individually) | USD $50.00 | -- | |
| 42 | 21586 18 7/8" x 9 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | USD $65.00 | -- | |
| 43 | SE70696 ESCAPE 1500 INSERT FACEPLATE 1 / appliance (sold individually) | USD $200.00 | -- | |
| 44 | PL70696 29" x 44" FACEPLATE TOP PANEL 1 / appliance (sold individually) | USD $65.00 | -- | |
| 45 | PL70695 29" x 44" FACEPLATE SIDE PANEL 2 / appliance (sold individually) | USD $65.00 | -- | |
| 46 | AC01298 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | USD $75.00 | -- | |
| - | SE74167 DOOR HINGE REPLACEMENT KIT 1 / appliance (sold individually) | USD $43.00 | -- | |
| 47 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
