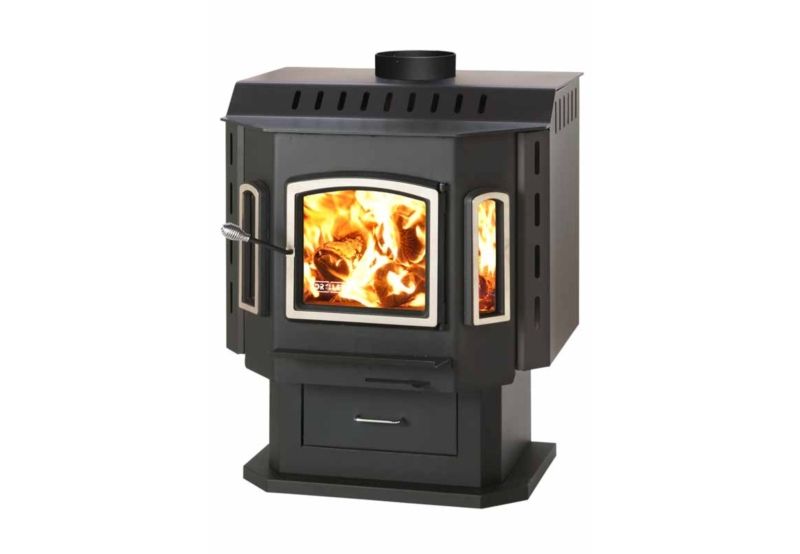

SAHARA
DB03500Serial Numbers: 100 to 2668
The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 2 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 3 | 30429 3/8" NICKEL COIL HANDLE 2 / appliance (sold individually) | USD $10.00 | -- | |
| 4 | AC09181 REPLACEMENT HANDLE & LATCH KIT 1 / appliance (sold individually) | USD $140.00 | -- | |
| 5 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 6 | 30095 SET SCREW HEX 1/4-20 X 1/4" 1 / appliance (sold individually) | USD $2.00 | -- | |
| 7 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 8 | 30417 BLACK HEX NUT #8-32 17 / appliance (sold individually) | USD $1.00 | -- | |
| 9 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | USD $2.00 | -- | |
| 10 | SE50260 9 5/8" x 11" x 10 7/16" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | USD $130.00 | -- | |
| 11 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 2 / appliance (sold individually) | USD $10.00 | -- | |
| 12 | PL47004 GLASS RETAINER FRAME 1 / appliance (sold individually) | USD $40.00 | -- | |
| 13 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 10 / appliance (sold individually) | USD $1.00 | -- | |
| 14 | AC06900 1/2" x 9' BLACK ROUND GASKET WITH ADHESIVE KIT 1 / appliance (sold individually) | USD $17.00 | -- | |
| 15 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 16 | PL47001 AIR CONTROL PLATE 1 / appliance (sold individually) | USD $36.00 | -- | |
| 17 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 2 / appliance (sold individually) | USD $1.00 | -- | |
| 18 | PL47034 ASH SHELF 1 / appliance (sold individually) | USD $34.00 | -- | |
| 19 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 20 | 30172 DOOR PIN 1/4"Ø x 1-1/4"L 1 / appliance (sold individually) | USD $15.00 | -- | |
| 21 | US00012 LID HANDLE 1 / appliance (sold individually) | -- | -- | |
| 22 | PL47031 PEDESTAL SURROUND 1 / appliance (sold individually) | USD $75.00 | -- | |
| 23 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 24 | SE47104 9 1/4" x 2 51/64" x 10" REPLACEMENT SIDE GLASS WITH GASKET 2 / appliance (sold individually) | USD $60.00 | -- | |
| 25 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 2 / appliance (sold individually) | USD $10.00 | -- | |
| 26 | 30417 BLACK HEX NUT #8-32 17 / appliance (sold individually) | USD $1.00 | -- | |
| 27 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 28 | PL47103 CHROME PLATED SIDE DECORATIVE TRIM 2 / appliance (sold individually) | USD $55.00 | -- | |
| 29 | 21086 BOTTOM INSULATING PAPER 19 1/4" x 22 3/8" x 1/8" 1 / appliance (sold individually) | USD $30.00 | -- | |
| 30 | 21087 10" x 11" x 1/8" SIDE AND REAR INSULATING PAPER 4 / appliance (sold individually) | USD $10.00 | -- | |
| 31 | PL36078 2 5/8" x 8" x 1 1/2" REFRACTORY BRICK 2 / appliance (sold individually) | USD $10.00 | -- | |
| 32 | PL36077 2 3/4" x 5 1/2" x 2 3/4" REFRACTORY BRICK 2 / appliance (sold individually) | USD $10.00 | -- | |
| 33 | PL36018 2 1/4" x 8 3/4" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | USD $10.00 | -- | |
| 34 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 7 / appliance (sold individually) | USD $3.50 | -- | |
| 36 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | USD $10.00 | -- | |
| 37 | PL36110 4" x 9" x 1" x 2" REFRACTORY BRICK 2 / appliance (sold individually) | USD $10.00 | -- | |
| 38 | PL36073 6 1/2" x 7/8" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | -- | |
| 39 | PL36017 1 3/4" x 8" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | USD $10.00 | -- | |
| 40 | PL36118 4 1/2" x 5 1/2" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | USD $15.00 | -- | |
| 41 | PL36046 4 1/2" x 9" x 1 1/2" x 1 1/2" REFRACTORY BRICK 2 / appliance (sold individually) | USD $10.00 | -- | |
| 42 | PL36016 1 3/8" x 7 3/8" x 1 1/4" BRICK 3 / appliance (sold individually) | USD $10.00 | -- | |
| 43 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 44 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 3 / appliance (sold individually) | USD $10.00 | -- | |
| 45 | PL47070 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $75.00 | -- | |
| 46 | PL47071 MIDDLE OR REAR SECONDARY AIR TUBE 2 / appliance (sold individually) | USD $75.00 | -- | |
| 47 | PL47074 BAFFLE GASES RETENTION PLATE 1 / appliance (sold individually) | USD $40.00 | -- | |
| 48 | PL47039 RIGHT SIDE BAFFLE SUPPORT 1 / appliance (sold individually) | USD $30.00 | -- | |
| 49 | PL47040 LEFT SIDE BAFFLE SUPORT 1 / appliance (sold individually) | USD $30.00 | -- | |
| 50 | PL47038 RIGHT CENTRAL BAFFLE SUPPORT 1 / appliance (sold individually) | USD $30.00 | -- | |
| 51 | PL47037 LEFT CENTRAL BAFFLE SUPPORT 1 / appliance (sold individually) | USD $41.00 | -- | |
| 52 | PL36018 2 1/4" x 8 3/4" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | USD $10.00 | -- | |
| 53 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 6 / appliance (sold individually) | USD $10.00 | -- | |
| 54 | PL36109 7/8" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | -- | |
| 55 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 56 | 21089 15 1/2" x 21" x 1" BAFFLE INSULATION 2 / appliance (sold individually) | USD $40.00 | -- | |
| 57 | PL47072 LEFT DECORATIVE PANEL 1 / appliance (sold individually) | USD $65.00 | -- | |
| 58 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 59 | PL47073 RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | USD $65.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
