DB05275PA

CASSANDRA - STEEL DOOR

--

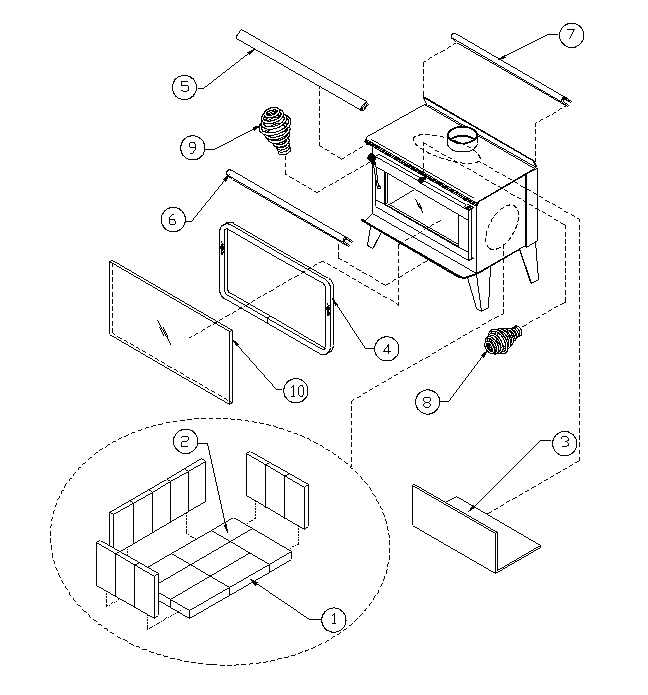

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
129020
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD
18 / appliance (sold individually)
--
2PL36049
4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
--
399998
DISCONTINUED
1 / appliance (sold individually)
----
4AC06100
SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
USD $12.50
599998
DISCONTINUED
1 / appliance (sold individually)
----
6PL04910-01
ASHPAN DECORATIVE MOULDING GEM 1500 GOLD
1 / appliance (sold individually)
USD $44.00
799998
DISCONTINUED
1 / appliance (sold individually)
----
8AC07861
1/4" BRASS COIL HANDLE
1 / appliance (sold individually)
--
9AC07862
3/8" BRASS COIL HANDLE
1 / appliance (sold individually)
USD $10.50
10SE04636-05
20 5/16" x 7 3/4" x 8 7/8" ARCHED GLASS WITH GASKET
1 / appliance (sold individually)
USD $120.00
10SE04935-04
REMPLACEMENT GLASS WITH GASKET FOR STEEL DOOR GEMINI 1500
1 / appliance (sold individually)
USD $120.00

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
