DB05345

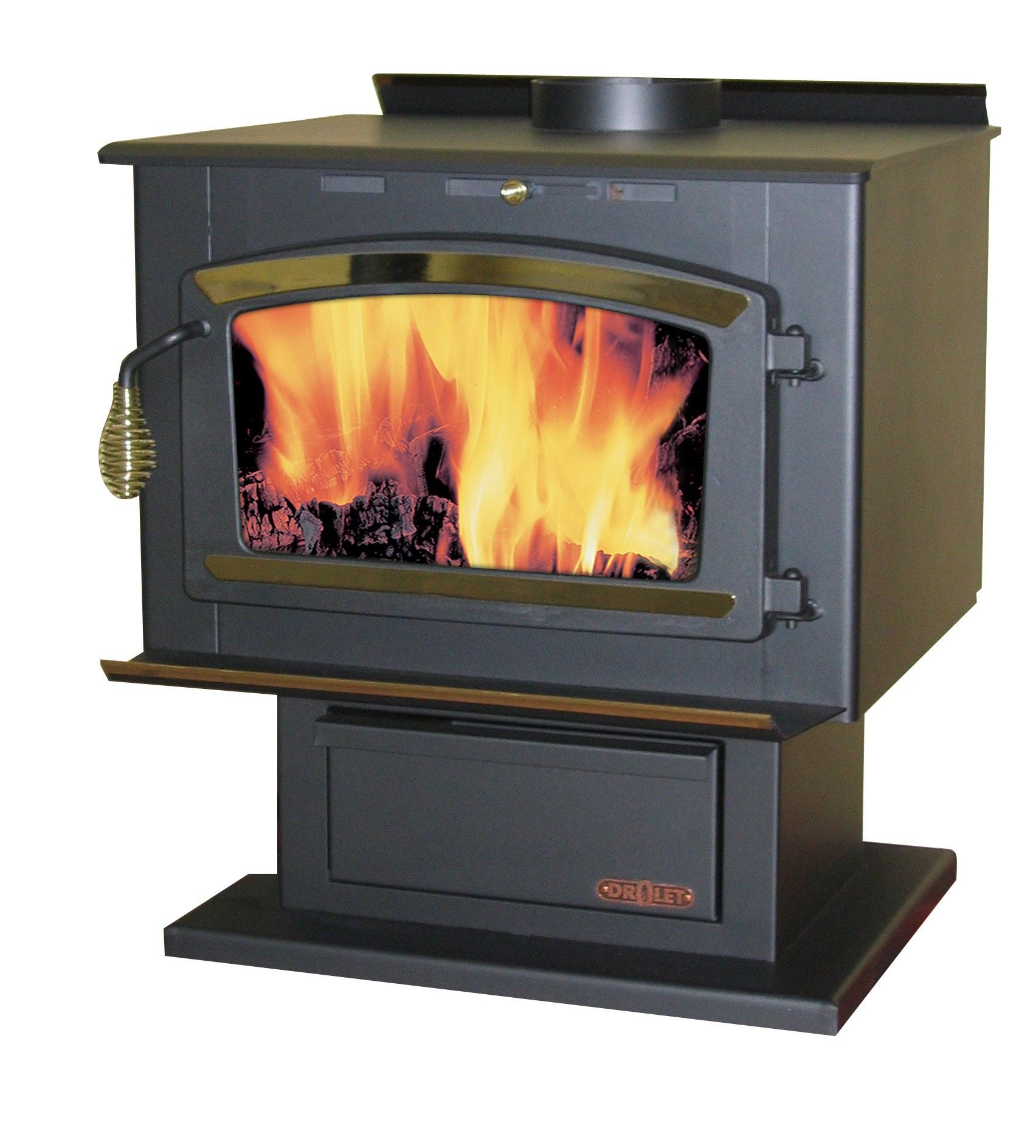

CLASSIC - N.E.

100 to 14301

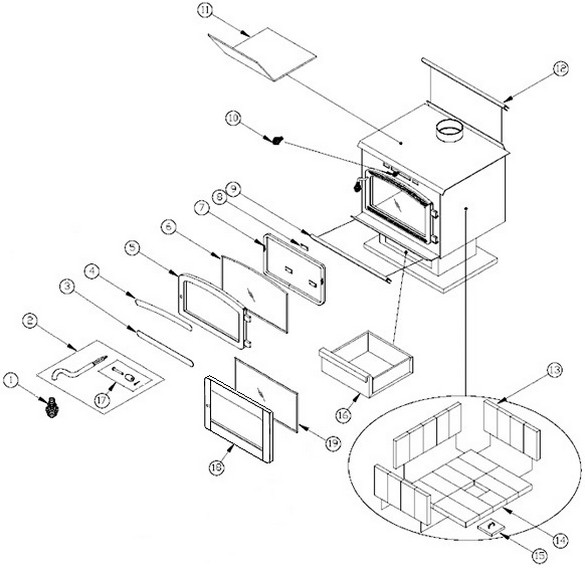

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC07860
1/2" BRASS COIL HANDLE
1 / appliance (sold individually)
--
2AC09155
HANDLE &LATCH KIT
1 / appliance (sold individually)
USD $22.50
399998
DISCONTINUED
1 / appliance (sold individually)
----
499998
DISCONTINUED
1 / appliance (sold individually)
----
599998
DISCONTINUED
1 / appliance (sold individually)
----
6SE03734-09
7 13/16" x 16 1/16" x 8 3/4" ARCHED REPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
USD $110.00
7AC06000
SILICONE & 1/2" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
8PL08535-06
GLASS RETAINER KIT
3 / appliance (sold individually)
USD $8.50
9PL08311
CLASSIC ASHTRAY DECORATIVE MOULDING
1 / appliance (sold individually)
USD $41.00
10AC07861
1/4" BRASS COIL HANDLE
1 / appliance (sold individually)
--
11PL08509
CLASSIC STEEL BAFFLE
1 / appliance (sold individually)
USD $34.00
12PL08312
CLASSIC HEAT STOPPER MOULDING
1 / appliance (sold individually)
USD $39.00
1329000
4" x 8" x 1 1/4" REFRACTORY BRICK
27 / appliance (sold individually)
--
14PL36048
4" x 4" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
--
15SE08308
CLASSIQUE CAP FOR ASH PAN DRAWER
1 / appliance (sold individually)
USD $38.00
1699998
DISCONTINUED
1 / appliance (sold individually)
----
17AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
--
1899999
BUILD TO ORDER
1 / appliance (sold individually)
--
19SE03534-2
REPLACEMENT GLASS WITH GASKET FOR CLASSIC STEEL DOOR
1 / appliance (sold individually)
USD $130.00

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
