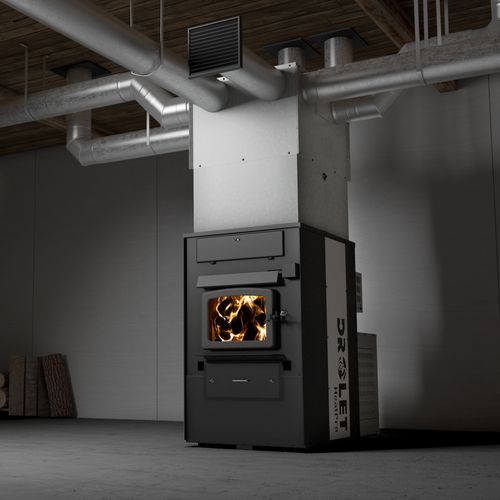

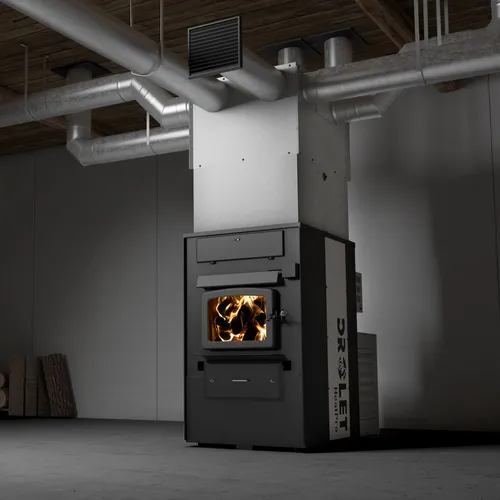

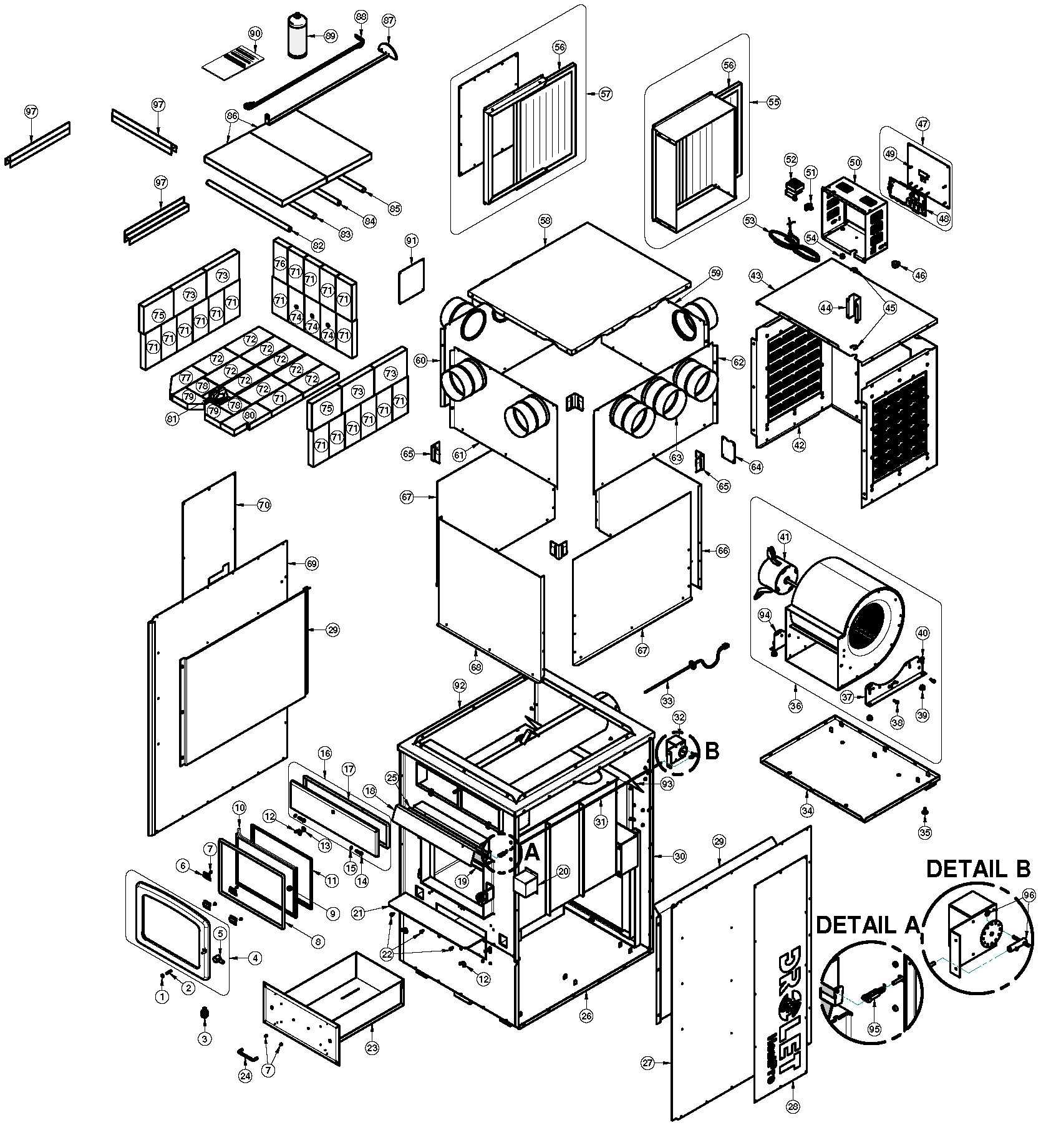

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 30100 BLACK HEX NUT 1/4 - 20 1 / appliance (sold individually) | USD $1.00 | -- | |
| 2 | 30128 SOCKET SET SCREW 1/4"-20 x 1 1/4" 1 / appliance (sold individually) | USD $2.00 | -- | |
| 3 | 30429 3/8" NICKEL COIL HANDLE 1 / appliance (sold individually) | USD $10.00 | -- | |
| 4 | SE24025 CAST IRON DOOR WITH GASKET AND HANDLE 1 / appliance (sold individually) | USD $170.00 | -- | |
| 5 | AC09151 REPLACEMENT HANDLE KIT 1 / appliance (sold individually) | USD $45.00 | -- | |
| 6 | PL51351 GLASS RETAINER FRAME BRACKET 4 / appliance (sold individually) | USD $5.00 | -- | |
| 7 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 6 / appliance (sold individually) | USD $1.00 | -- | |
| 8 | AC06725 GLUE AND 3/4" x 7' WHITE DOOR GASKET KIT 1 / appliance (sold individually) | USD $17.00 | -- | |
| 9 | SE56287 10 7/8" x 15 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | USD $140.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $10.00 | -- | |
| 11 | PL56285 GLASS RETAINER 2 / appliance (sold individually) | USD $15.00 | -- | |
| 12 | 30416 WING NUT 3/8"-16 3 / appliance (sold individually) | USD $2.00 | -- | |
| 13 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 1 / appliance (sold individually) | USD $1.00 | -- | |
| 14 | 30168 HINGE PIN 5/16"O x 1 1/4"L 2 / appliance (sold individually) | USD $13.00 | -- | |
| 15 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | USD $5.00 | -- | |
| 16 | SE56800 HEAT EXCHANGER ACCESS DOOR ASSEMBLY 1 / appliance (sold individually) | USD $120.00 | -- | |
| 17 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $14.00 | -- | |
| 18 | SE56792 PRIMARY AIR DAMPER ASSEMBLY 1 / appliance (sold individually) | USD $65.00 | -- | |
| 19 | PL56356 PRIMARY AIR DEFLECTOR HEAT SHIELD 1 / appliance (sold individually) | USD $55.00 | -- | |
| 20 | PL66125 AIR INLET DAMPER PROTECTION BOX 1 / appliance (sold individually) | USD $39.00 | -- | |
| 21 | PL56780 ASH LIP 1 / appliance (sold individually) | USD $49.00 | -- | |
| 22 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 6 / appliance (sold individually) | USD $1.00 | -- | |
| 23 | SE56781 ASH DRAWER 3 / appliance (sold individually) | USD $180.00 | -- | |
| 24 | 28061 CHROME ASH DRAWER HANDLE 1 / appliance (sold individually) | USD $10.00 | -- | |
| 25 | 21341 AIR CONTROL PLATE GASKET 1 / appliance (sold individually) | USD $15.00 | -- | |
| 26 | PL56765 AIR JACKET FLOOR 1 / appliance (sold individually) | USD $200.00 | -- | |
| 27 | PL56769 RIGHT AIR JACKET PANEL 1 / appliance (sold individually) | USD $175.00 | -- | |
| 28 | PL56772 RIGHT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | USD $180.00 | -- | |
| 29 | PL56770 INTERNAL DEFLECTOR 2 / appliance (sold individually) | USD $140.00 | -- | |
| 30 | PL56773 REAR AIR JACKET 1 / appliance (sold individually) | USD $130.00 | -- | |
| 31 | 30869 PRIMARY AIR CONTROL ROD 1 / appliance (sold individually) | USD $36.00 | -- | |
| 32 | SE51000-01 HONEYWELL 24V DAMPER MOTOR WITH TERMINALS 1 / appliance (sold individually) | USD $220.00 | -- | |
| 33 | SE44096 100 OHM RTD PROBE 38" WIRE WITH CONNECTOR 1 / appliance (sold individually) | USD $110.00 | -- | |
| 34 | PL56784 BLOWER BOX BASE 1 / appliance (sold individually) | USD $85.00 | -- | |
| 35 | 30536 LEVELING BOLT 1/4 - 20 x 1" 2 / appliance (sold individually) | USD $5.00 | -- | |
| 36 | SE56815 FAN ASSEMBLY WITH 1/3 HP DD MOTOR 1 / appliance (sold individually) | USD $525.00 | -- | |
| 37 | 30336 RIGHT HOUSING SUPPORT FOR G10 BLOWER 1 / appliance (sold individually) | USD $29.00 | -- | |
| 38 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 4 / appliance (sold individually) | USD $2.00 | -- | |
| 39 | 30335 BLOWER ANTIVIBRATION CUSHION 4 / appliance (sold individually) | USD $5.00 | -- | |
| 40 | 30109 BOLT HEX 1/4 - 20 x 1" 4 / appliance (sold individually) | USD $13.00 | -- | |
| 41 | 51003 1/3 HP 4 SPEED MOTOR FOR G-10 DD 1 / appliance (sold individually) | USD $280.00 | -- | |
| 42 | PL56785 BLOWER BOX CONTOUR 1 / appliance (sold individually) | USD $150.00 | -- | |
| 43 | PL56786 BLOWER BOX TOP 1 / appliance (sold individually) | USD $60.00 | -- | |
| 44 | PL66041 WIRE CHANNEL 1 / appliance (sold individually) | USD $21.00 | -- | |
| 45 | 30494 PANDUIT POLYETHYLENE EXTRUSION 0 / appliance (sold individually) | USD $19.00 | -- | |
| 46 | 44091 ROCKER SWITCH 2 POSITION MSR-8 1 / appliance (sold individually) | USD $10.00 | -- | |
| 47 | SE56810 ELECTRONIC FAN & LIMIT WITH COVER 1 / appliance (sold individually) | USD $350.00 | -- | |
| 48 | PL56798 ELECTRONIC FAN & LIMIT BOARD HEATPRO 1 / appliance (sold individually) | USD $270.00 | -- | |
| 49 | 30408 ELECTRONIC BOARD CLIP 7 / appliance (sold individually) | USD $5.00 | -- | |
| 50 | PL56809 ELECTRONIC FAN & LIMIT HOUSING 1 / appliance (sold individually) | USD $39.00 | -- | |
| 51 | 60036 THERMOSTAT TERMINAL 1 / appliance (sold individually) | USD $10.00 | -- | |
| 52 | 60208 TRANSFORMER 120 V/24 V 20 VA 1 / appliance (sold individually) | USD $55.00 | -- | |
| 53 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | USD $20.00 | -- | |
| 54 | 60008 BLACK NYLON BUSHING 1 / appliance (sold individually) | USD $13.00 | -- | |
| 55 | AC01392 COLD AIR RETURN HOUSING WITH FILTER 1 / appliance (sold individually) | USD $110.00 | -- | |
| 56 | 21044 CARDBOARD FRAME AIR FILTER 20" x 15" x 1" 2 / appliance (sold individually) | USD $20.00 | -- | |
| 57 | AC01390 CARDBOARD FRAME AIR FILTER WITH SUPPORT (20" x 15" x 1") 1 / appliance (sold individually) | USD $60.00 | -- | |
| 58 | PL56805 PLENUM TOP PANEL 1 / appliance (sold individually) | USD $100.00 | -- | |
| 59 | PL56804 TOP PLENUM REAR PANEL 1 / appliance (sold individually) | USD $85.00 | -- | |
| 60 | PL56807 TOP PLENUM LEFT PANEL 1 / appliance (sold individually) | USD $95.00 | -- | |
| 61 | PL56806 TOP PLENUM FRONT PANEL 1 / appliance (sold individually) | USD $90.00 | -- | |
| 62 | PL56803 TOP PLENUM RIGHT PANEL 1 / appliance (sold individually) | USD $95.00 | -- | |
| 63 | PL69151 ADAPTER 6" 10 / appliance (sold individually) | USD $75.00 | -- | |
| 64 | PL56817 TOP PLENUM RTD COVER 1 / appliance (sold individually) | USD $19.00 | -- | |
| 65 | PL56818 BOTTOM PLENUM CORNER REINFORMENT 4 / appliance (sold individually) | USD $19.00 | -- | |
| 66 | PL56801 BOTTOM PLENUM REAR PANEL 1 / appliance (sold individually) | USD $100.00 | -- | |
| 67 | PL56802 BOTTOM PLENUM LEFT OR RIGHT PANEL 2 / appliance (sold individually) | USD $70.00 | -- | |
| 68 | PL56808 BOTTOM PLENUM FRONT PANEL 1 / appliance (sold individually) | USD $95.00 | -- | |
| 69 | PL56768 LEFT DECORATIVE PANNEL 1 / appliance (sold individually) | USD $200.00 | -- | |
| 70 | PL56771 LEFT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | USD $160.00 | -- | |
| 71 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 19 / appliance (sold individually) | USD $3.50 | -- | |
| 72 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 9 / appliance (sold individually) | USD $10.00 | -- | |
| 73 | 29005 6" x 8 1/4" x 1 1/4" REFRACTORY BRICK HD 4 / appliance (sold individually) | USD $5.00 | -- | |
| 74 | 21343 REFRACTORY BRICK WITH HOLE 3 / appliance (sold individually) | USD $25.00 | -- | |
| 75 | PL36231 6" x 7 1/2" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | USD $20.00 | -- | |
| 76 | PL36119 3 1/2" x 8" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $15.00 | -- | |
| 77 | PL36059 4" x 8 7/8" x 3 3/8" x 3 7/8" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | -- | |
| 78 | PL36084 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB4.5) 2 / appliance (sold individually) | USD $10.00 | -- | |
| 79 | PL36233 3 1/2" x 6" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | USD $10.00 | -- | |
| 80 | PL36232 4" x 8 3/4" x 1 1/4" x 1/2" x 3 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | -- | |
| 81 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | USD $25.00 | -- | |
| 82 | PL56760 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $50.00 | -- | |
| 83 | PL56761 MIDDLE FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $50.00 | -- | |
| 84 | PL56763 MIDDLE REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $50.00 | -- | |
| 85 | PL56764 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $50.00 | -- | |
| 86 | 21220 C-CAST BAFFLE 19 3/4" x 11 3/8" x 1 1/4" 2 / appliance (sold individually) | USD $130.00 | -- | |
| 87 | PL48170 HEAT EXCHANGER SCRAPER 1 / appliance (sold individually) | USD $30.00 | -- | |
| 88 | PL48173 POKER 1 / appliance (sold individually) | USD $40.00 | -- | |
| 89 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $17.00 | -- | |
| 90 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 91 | PL56814 PLENUM OUTLET BLOCK-OFF PLATE 5 / appliance (sold individually) | USD $26.00 | -- | |
| 92 | PL56775 AIR JACKET TOP 1 / appliance (sold individually) | USD $190.00 | -- | |
| 93 | PL56774 REAR AIR DEFLECTOR 1 / appliance (sold individually) | USD $65.00 | -- | |
| 94 | 30334 LEFT HOUSING SUPPORT FOR G10 BLOWER 10-458-085 1 / appliance (sold individually) | USD $29.00 | -- | |
| 95 | 30867 CLEVIS YOKES 1 / appliance (sold individually) | USD $29.00 | -- | |
| 96 | SE56822 ROD RETAINER 1 / appliance (sold individually) | USD $41.00 | -- | |
| 97 | PL56286 BRICK RETAINER 3 / appliance (sold individually) | USD $25.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
