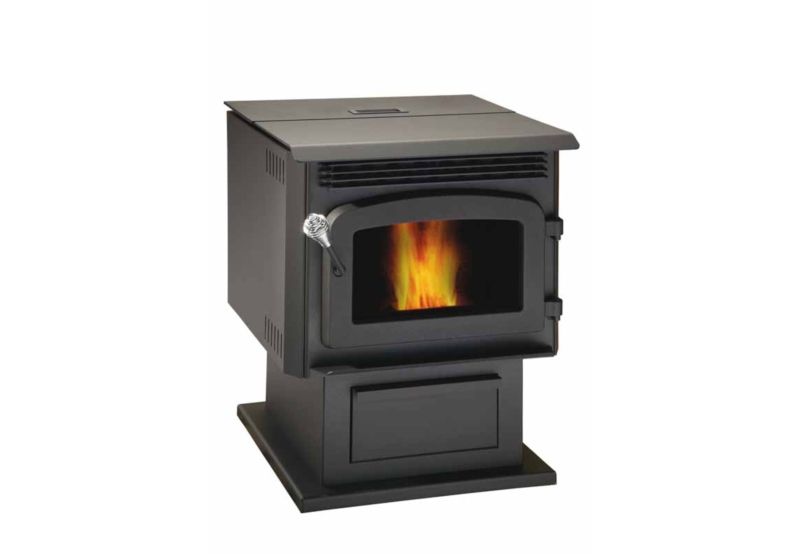

ECO-35
DP000351081 and more

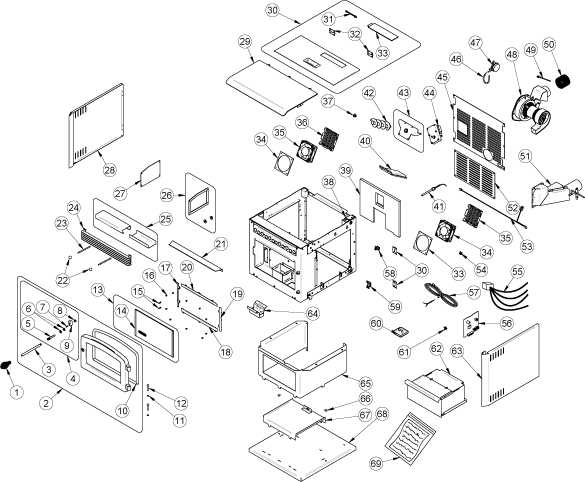

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | USD $6.00 | -- | |
| 2 | SE54580-01 DOOR WITH GASKET HANDLE AND LATCH 1 / appliance (sold individually) | USD $230.00 | -- | |
| 3 | PL52685 PELLET STOVES REMOVABLE HANDLE ROD 1 / appliance (sold individually) | USD $25.00 | -- | |
| 4.5 | AC09177 REPLACEMENT HANDLE KIT 2 / appliance (sold individually) | USD $65.00 | -- | |
| 6 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 2 / appliance (sold individually) | USD $1.00 | -- | |
| 7 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | USD $3.00 | -- | |
| 8 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | USD $2.00 | -- | |
| 9 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | USD $20.00 | -- | |
| 10 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $17.00 | -- | |
| 11 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | USD $5.00 | -- | |
| 12 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | USD $2.00 | -- | |
| 13 | SE54582-02 8 3/4" x 14 3/4" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | USD $180.00 | -- | |
| 14 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $10.00 | -- | |
| 15 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | USD $1.00 | -- | |
| 16 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 10 / appliance (sold individually) | USD $1.00 | -- | |
| 17 | PL49080 RIGHT GLASS RETAINER 1 / appliance (sold individually) | USD $21.00 | -- | |
| 18 | PL49082 BOTTOM GLASS FRAME 1 / appliance (sold individually) | USD $26.00 | -- | |
| 19 | PL49081 LEFT GLASS RETAINER 1 / appliance (sold individually) | USD $21.00 | -- | |
| 20 | PL49193 UPPER GLASS FRAME 1 / appliance (sold individually) | USD $39.00 | -- | |
| 21 | PL49058 ASH LIP 1 / appliance (sold individually) | USD $10.00 | -- | |
| 22 | 30562 3/4" x 1/4"-20 ROUND HANDLE FOR EXCHANGER ROD 2 / appliance (sold individually) | USD $15.00 | -- | |
| 23 | 30547 HEAT EXCHANGER ROD 35 SERIE 2 / appliance (sold individually) | USD $26.00 | -- | |
| 24 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 25 | SE49025 BAFFLE ASSEMBLY 35 SERIE 1 / appliance (sold individually) | USD $40.00 | -- | |
| 26 | AC09188 35 SERIES MAINTENANCE GASKET KIT (0.02 m3) 1 / appliance (sold individually) | USD $29.00 | -- | |
| 27 | PL49015 COMBEX CLEANOUT ACCESS PANEL 1 / appliance (sold individually) | USD $16.00 | -- | |
| 28 | PL49054 LEFT DECORATIVE PANEL 1 / appliance (sold individually) | -- | -- | |
| 29 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 30 | SE49018 HOPPER LID DROLET 35 1 / appliance (sold individually) | -- | -- | |
| 31 | 60294 KEYPAD EXTENSION WIRE TYCO TCT 1 / appliance (sold individually) | USD $36.00 | -- | |
| 32 | 30013 2" x 1 1/2" HINGE 2 / appliance (sold individually) | USD $5.00 | -- | |
| 33 | 44022 TOUCH SCREEN CONTROL TYCO TCT 1 / appliance (sold individually) | USD $200.00 | -- | |
| 34 | 21177 CONVECTION BLOWER GASKET 2 / appliance (sold individually) | USD $5.00 | -- | |
| 35 | 44100 TUBEAXIAL BLOWER 115V-60Hz-18W 2 / appliance (sold individually) | USD $150.00 | -- | |
| 36 | PL49048 FINGER GUARD FILTER SUPPORT 2 / appliance (sold individually) | USD $20.00 | -- | |
| 37 | 44059 THERMODISC 36T11 L250-25 AUTOMATIC 1 / appliance (sold individually) | USD $25.00 | -- | |
| 38 | 44098 HOPPER LID SAFETY SWITCH 1 / appliance (sold individually) | USD $20.00 | -- | |
| 39 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 40 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 41 | 44132 PELLET IGNITER 120 V WITH ALLEN SET SCREW 1 / appliance (sold individually) | USD $120.00 | -- | |
| 42 | 24017 CAST IRON AUGER 1 / appliance (sold individually) | USD $130.00 | -- | |
| 43 | PL52516 AUGER SUPPORT 1 / appliance (sold individually) | USD $25.00 | -- | |
| 44 | 44038 AUGER GEAR MOTOR 1 RPM 1 / appliance (sold individually) | USD $220.00 | -- | |
| 45 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 46 | 49004 PRESSURE SWITCH HOSE 1 / appliance (sold individually) | USD $15.00 | -- | |
| 47 | 44029 PRESSURE SWITCH 1 / appliance (sold individually) | USD $50.00 | -- | |
| 48 | SE44101 COMBEX BLOWER 35 SERIE 1 / appliance (sold individually) | USD $300.00 | -- | |
| 49 | SE44095 THERMISTOR ASSEMBLY 1 / appliance (sold individually) | USD $45.00 | -- | |
| 50 | 21145 EXHAUST ALUMINIUM LINER 3" x 6" 1 / appliance (sold individually) | USD $15.00 | -- | |
| 51 | SE49187 AIR INTAKE ADAPTER 1 / appliance (sold individually) | USD $90.00 | -- | |
| 52 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 53 | 60281 CONVECTION FAN WIRING 35 ET 45 SERIE 1 / appliance (sold individually) | USD $50.00 | -- | |
| 54 | 44041 THERMODISC L250F MANUAL RESET 36T16 1 / appliance (sold individually) | USD $25.00 | -- | |
| 55 | 60280 WIRING HARNESS 35 SERIE 1 / appliance (sold individually) | USD $120.00 | -- | |
| 56 | 44013 FUSE 7.5A / 250V / 1/4"Ø x 1 1/4"L 1 / appliance (sold individually) | USD $16.00 | -- | |
| 56 | PL44102 PROGRAMMED PC BOARD 35 SERIE 1 / appliance (sold individually) | USD $210.00 | -- | |
| 56 | 44015 FUSE 5A / 250V / 1/4"Ø x 1 1/4"L 1 / appliance (sold individually) | USD $5.00 | -- | |
| 57 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | USD $20.00 | -- | |
| 58 | 60036 THERMOSTAT TERMINAL 1 / appliance (sold individually) | USD $10.00 | -- | |
| 59 | 30454 DOUBLE MAGNET 1 / appliance (sold individually) | USD $10.00 | -- | |
| 60 | SE16059 ASH PLUG 1 / appliance (sold individually) | USD $25.00 | -- | |
| 61 | 44058 THERMODISC 36T12 F160 1 / appliance (sold individually) | USD $20.00 | -- | |
| 62 | SE49059 ASH DRAWER 1 / appliance (sold individually) | USD $85.00 | -- | |
| 63 | PL49055 RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | -- | -- | |
| 64 | SE49045 PELLET BURN POT 35 SERIE 1 / appliance (sold individually) | USD $40.00 | -- | |
| 65 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 66 | 30418 FINISHING PLUG 3/8" 2 / appliance (sold individually) | USD $16.00 | -- | |
| 67 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 68 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 69 | SE45266 ECO-35 INSTRUCTION MANUAL KIT 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
