DP00035-1

ECO-35

100 to 1080

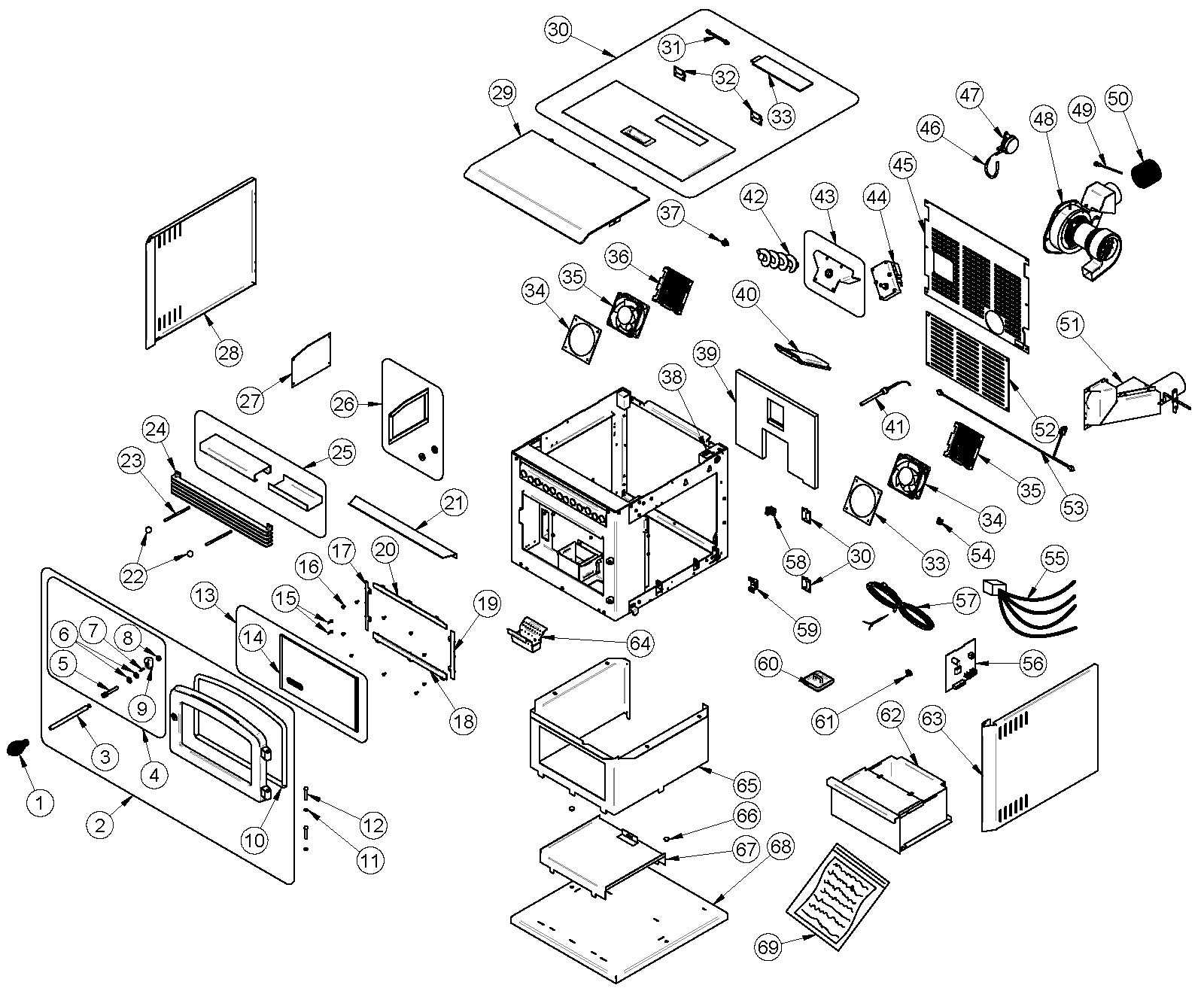

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC07868
1/2" BLACK COIL HANDLE
1 / appliance (sold individually)
--
2SE54580-01
DOOR WITH GASKET HANDLE AND LATCH
1 / appliance (sold individually)
USD $140.00
3PL52685
PELLET STOVES REMOVABLE HANDLE ROD
1 / appliance (sold individually)
USD $14.50
4AC09177
REMPLACEMENT HANDLE KIT
3 / appliance (sold individually)
USD $37.00
5AC09177
REMPLACEMENT HANDLE KIT
3 / appliance (sold individually)
USD $37.00
630205
ZINC WASHER ID 13/32" x OD 13/16"
2 / appliance (sold individually)
USD $0.60
730533
LATCH KEY PATH PIN
1 / appliance (sold individually)
USD $1.75
830224
LOCKNUT 3/8"-16 HEX
1 / appliance (sold individually)
USD $1.25
930033
STEEL DOOR LATCH
1 / appliance (sold individually)
USD $8.50
10AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
1130055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
--
1230169
DOOR HINGE PIN 5/16"O x 1 3/4" L
2 / appliance (sold individually)
USD $1.25
13SE54582-02
8 3/4" x 14 3/4" REPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
USD $110.00
14AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
1530123
SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC
2 / appliance (sold individually)
--
1630124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
10 / appliance (sold individually)
--
17PL49080
RIGHT GLASS RETAINER
1 / appliance (sold individually)
USD $18.00
18PL49082
BOTTOM GLASS FRAME
1 / appliance (sold individually)
USD $22.00
19PL49081
LEFT GLASS RETAINER
1 / appliance (sold individually)
USD $18.00
20PL49193
UPPER GLASS FRAME
1 / appliance (sold individually)
USD $31.00
21PL49058
ASH LIP
1 / appliance (sold individually)
USD $6.00
2230562
3/4" x 1/4"-20 ROUND HANDLE FOR EXCHANGER ROD
2 / appliance (sold individually)
USD $8.50
2330547
HEAT EXCHANGER ROD 35 SERIE
2 / appliance (sold individually)
USD $21.00
24SE49034
DÉCORATIVE EXCHANGER GRILL
1 / appliance (sold individually)
USD $70.00
25SE49025
BAFFLE ASSEMBLY 35 SERIE
1 / appliance (sold individually)
USD $22.50
26AC09188
35 SERIES MAINTENANCE GASKET KIT (0.02 m3)
1 / appliance (sold individually)
USD $28.00
27PL49015
COMBEX CLEANOUT ACCESS PANEL
1 / appliance (sold individually)
USD $15.00
28PL49054
LEFT DECORATIVE PANEL
1 / appliance (sold individually)
USD $43.00
29SE49056
FRONT TOP DROLET 35
1 / appliance (sold individually)
USD $65.00
30SE49018
HOPPER LID DROLET 35
1 / appliance (sold individually)
USD $80.00
3160294
KEYPAD EXTENSION WIRE TYCO TCT
1 / appliance (sold individually)
USD $25.00
3230013
HINGE 2" x 1 1/2"
2 / appliance (sold individually)
USD $3.00
3344022
TOUCH SCREEN CONTROL TYCO TCT
1 / appliance (sold individually)
USD $120.00
3421177
CONVECTION BLOWER GASKET
2 / appliance (sold individually)
USD $3.00
3544100
TUBEAXIAL BLOWER 115V-60Hz-18W
2 / appliance (sold individually)
USD $55.00
36PL49048
FINGER GUARD FILTER SUPPORT
2 / appliance (sold individually)
USD $11.50
3744059
THERMODISC 36T11 L250-25 AUTOMATIC
1 / appliance (sold individually)
USD $11.50
3844098
HOPPER LID SAFETY SWITCH
1 / appliance (sold individually)
USD $8.50
39PL49204
STAINLESS STEEL REAR FIRE BOX WALL PROTECTOR
1 / appliance (sold individually)
USD $20.00
40SE49230
UPPER HEAT SHEILD
1 / appliance (sold individually)
USD $35.00
4144030
PELLET STOVE IGNITER (THREADED)
1 / appliance (sold individually)
USD $65.00
4224017
CAST IRON AUGER
1 / appliance (sold individually)
USD $70.00
43PL52516
AUGER SUPPORT
1 / appliance (sold individually)
USD $11.50
4444038
AUGER GEAR MOTOR 1 RPM
1 / appliance (sold individually)
USD $120.00
45PL49009
UPPER REAR PANEL
1 / appliance (sold individually)
USD $31.00
4649004
PRESSURE SWITCH HOSE
1 / appliance (sold individually)
USD $8.50
4744029
PRESSURE SWITCH
1 / appliance (sold individually)
USD $22.50
48SE44101
COMBEX BLOWER 35 SERIE
1 / appliance (sold individually)
USD $250.00
49SE44095
THERMISTOR ASSEMBLY
1 / appliance (sold individually)
USD $26.00
5021145
EXHAUST ALUMINIUM LINER 3" x 6"
1 / appliance (sold individually)
USD $8.50
51SE49187
AIR INTAKE ADAPTER
1 / appliance (sold individually)
USD $80.00
52PL49053
BOTTOM BACK PANEL
1 / appliance (sold individually)
USD $25.00
5360281
CONVECTION FAN WIRING 35 ET 45 SERIE
1 / appliance (sold individually)
USD $20.00
5444041
THERMODISC L250F MANUAL RESET 36T16
1 / appliance (sold individually)
USD $14.50
5560280
WIRING HARNESS 35 SERIE
1 / appliance (sold individually)
USD $65.00
5644015
FUSE 5A / 250V / 1/4"Ø x 1 1/4"L
1 / appliance (sold individually)
USD $1.75
5644013
FUSE 7.5A / 250V / 1/4" Ø x 1 1/4"L
1 / appliance (sold individually)
USD $13.00
56PL44102
PROGRAMMED PC BOARD 35 SERIE
1 / appliance (sold individually)
USD $130.00
5760013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
--
5860036
THERMOSTAT TERMINAL
1 / appliance (sold individually)
USD $6.00
5930454
DOUBLE MAGNET
1 / appliance (sold individually)
USD $4.50
60SE16059
ASH PLUG
1 / appliance (sold individually)
--
6144058
THERMODISC 36T12 F160
1 / appliance (sold individually)
USD $11.50
62SE49059
ASH DRAWER
1 / appliance (sold individually)
USD $48.00
63PL49055
RIGHT DECORATIVE PANEL
1 / appliance (sold individually)
USD $43.00
64SE49045
PELLET BURN POT 35 SERIE
1 / appliance (sold individually)
USD $22.50
65PL49051
PEDESTAL SURROUND
1 / appliance (sold individually)
USD $45.00
6630418
FINISHING PLUG 3/8"
2 / appliance (sold individually)
--
67PL49052
ASH DRAWER GUIDE
1 / appliance (sold individually)
USD $28.00
68PL49050
BASE
1 / appliance (sold individually)
USD $48.00
69SE45266
ECO-35 INSTRUCTION MANUAL KIT
1 / appliance (sold individually)
USD $60.00

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
