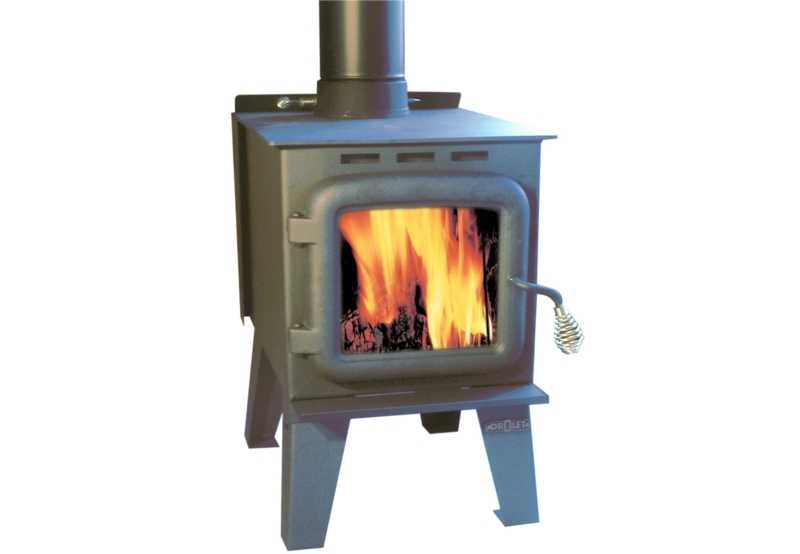

COMPAK
DB03060Serial Numbers: 4647 to 5801
The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 2 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | AC09160 HANDLE &LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 5 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 6 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 7 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 9 | SE20207 9 29/32" x 10 29/32" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 11 | PL03610-01 ASH LIP 1 / appliance (sold individually) | CAD $49.00 | -- | |
| 12 | PL31006 BOTTOM GLASS RETAINER 1 / appliance (sold individually) | CAD $36.00 | -- | |
| 13 | PL20214 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 14 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 6 / appliance (sold individually) | CAD $1.00 | -- | |
| 15 | SE03305-02 LEG KIT (4) 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 16 | 30025 BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 17 | 30501 BLACK WASHER #10 8 / appliance (sold individually) | CAD $12.00 | -- | |
| 18 | 30100 BLACK HEX NUT 1/4 - 20 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 19 | PL03305-01 RIGHT LEG 2 / appliance (sold individually) | CAD $44.00 | -- | |
| 20 | PL03305 LEFT LEG 2 / appliance (sold individually) | CAD $44.00 | -- | |
| 21 | PL03639-01 UNDERSIDE HEAT SHIELD 1 / appliance (sold individually) | CAD $49.00 | -- | |
| 22 | SE06748 SUPPORT FOR THE BLOWER AC02050 2 / appliance (sold individually) | CAD $35.00 | -- | |
| 23 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 24 | SE06748 SUPPORT FOR THE BLOWER AC02050 2 / appliance (sold individually) | CAD $35.00 | -- | |
| 25 | 40030 6 mm GASKET (PRICE FOR 1 LINEAR FOOT) 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 26 | 24097 6" CAST IRON FLUE DAMPER 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 27 | PL24095 6" CAST IRON FLUE COLLAR 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 28 | 30411 BOLT 5/16-18 x 1 1/2" HEX GRADE 2 3 / appliance (sold individually) | CAD $2.00 | -- | |
| 28 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 29 | PL31003 INNER SMOKE BAFFLE 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 30 | PL31016 BAFFLE 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 31 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 18 / appliance (sold individually) | CAD $10.00 | -- | |
| 32 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 33 | SE45109 EE1200 SERIE MANUEL KIT 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
