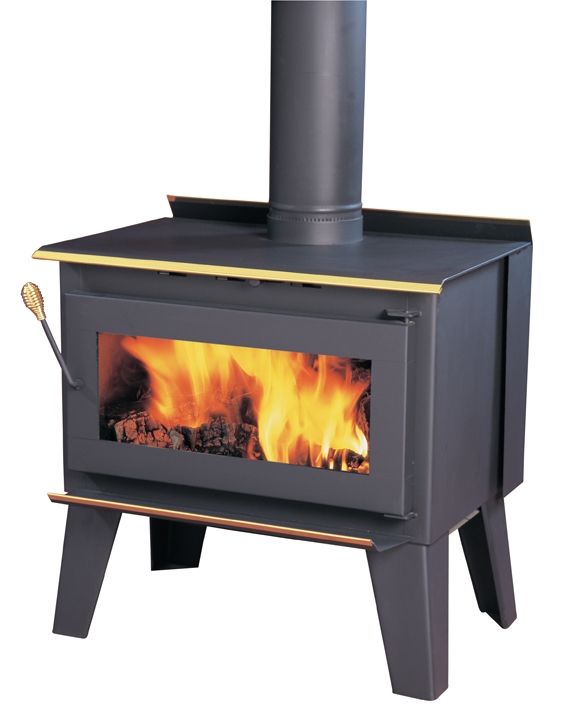

CASSANDRA - STEEL DOOR
DB05275PA--

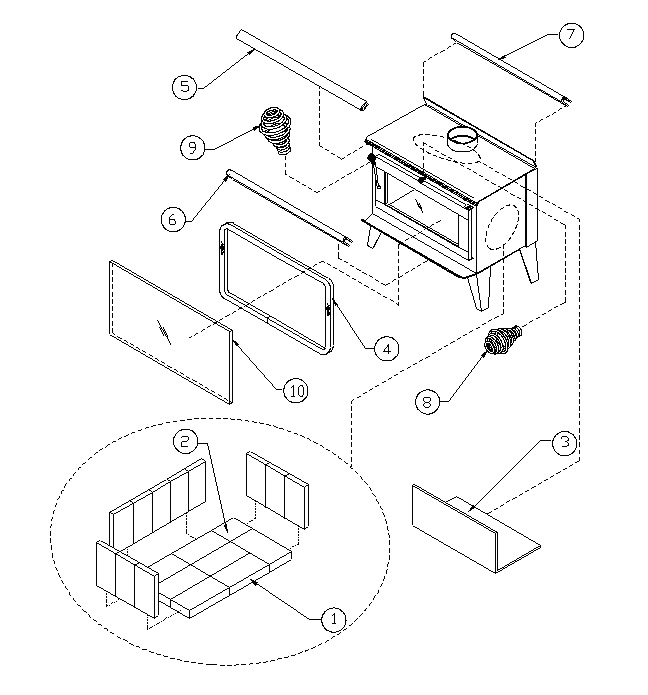

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 29020 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD 18 / appliance (sold individually) | CAD $10.00 | -- | |
| 2 | PL36049 4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 5 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 6 | PL04910-01 ASHPAN DECORATIVE MOULDING GEM 1500 GOLD 1 / appliance (sold individually) | CAD $46.00 | -- | |
| 7 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 8 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 9 | AC07862 3/8" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 10 | SE04636-05 20 5/16" x 7 3/4" x 8 7/8" ARCHED GLASS WITH GASKET 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 10 | SE04935-04 REPLACEMENT GLASS WITH GASKET FOR STEEL DOOR GEMINI 1500 1 / appliance (sold individually) | CAD $190.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
